Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 61

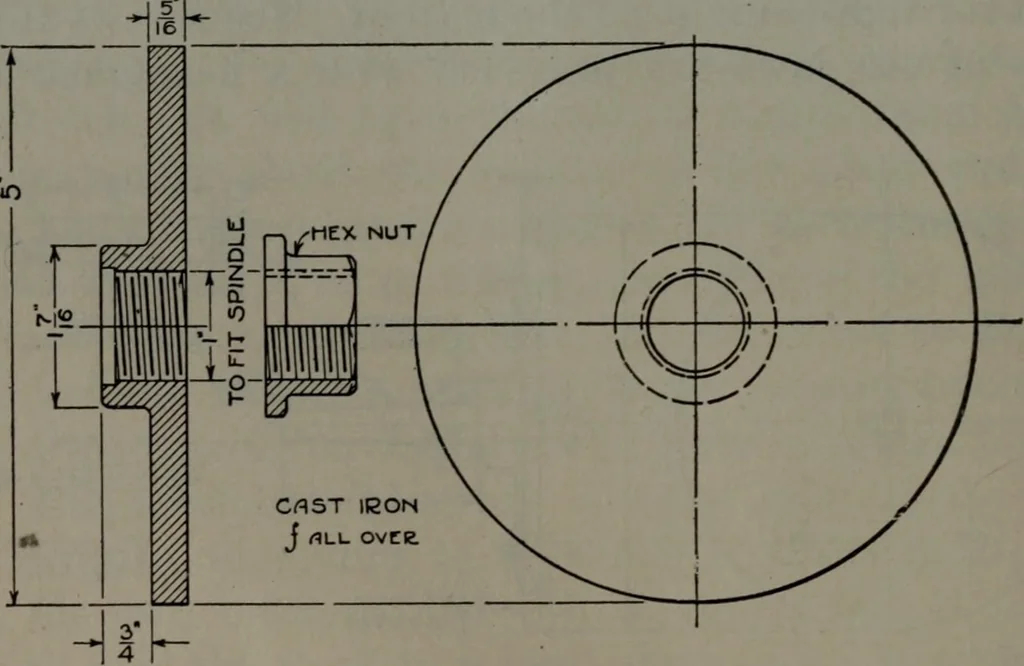

ily make up a pattern of this and have it cast ata local foundry, as the pattern can be turned out withvery little trouble on a small lathe. The casting is pro- 58 Model Engineering vided with a No. 0 Morse Taper. After the shank isfastened to the pad it is again put between centers andthe front of… … Fig. 32—Grinding disc made to attach to a small lathe spindle The small plunger will be found very useful in pre-venting light pieces from turning when they are beingdrilled. In case some large plate surface is being drilled,the spring on the plunger will allow it to come back andpermit the work to…
