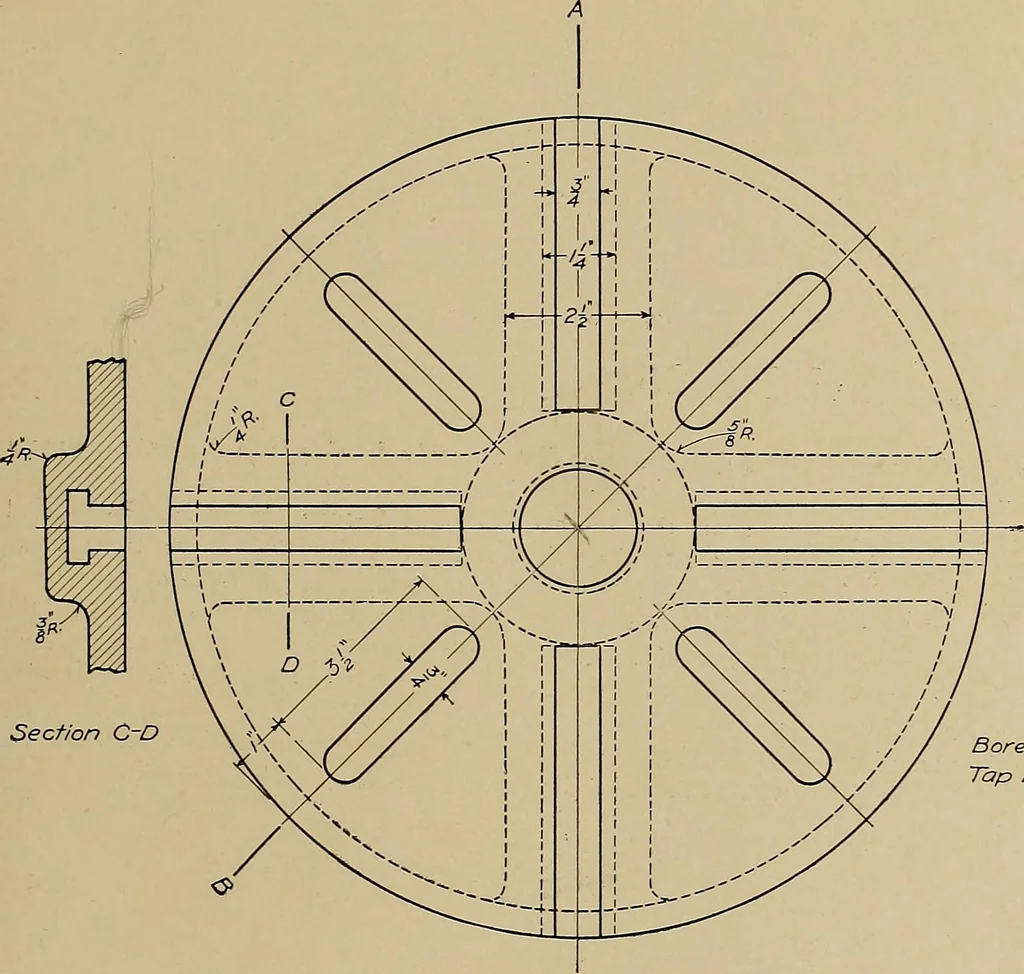

l methodof showing a true section along this line. Section CD is necessary to give the pattern maker a clear idea ofthe shape of the metal back of the T slot. Where dimensions are given in decimals, draw that part to the near-est sixty-fourth. Study the illustration carefully, so as to get a clear… … Section C-D Bore 2.034Tap 2£~ 6 Thd.U. S, Std.
