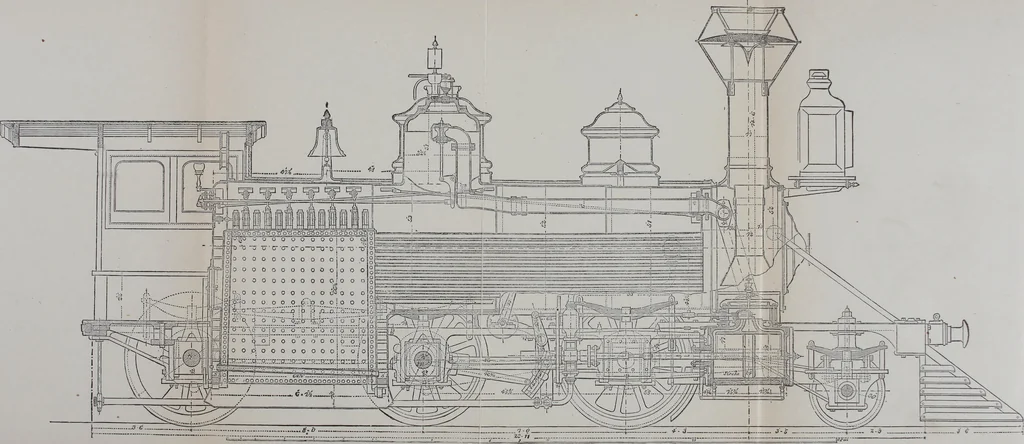

(steel) . . ONumber of tubes—163. Length II 3 Outside diameter of tubes O 2 Length of fire-box inside 8 6 Width 2 9J Depth (sloping)—39-53 Thickness of fire-box plates (steel), side sheets O Oj^ back sheet O o/s crown sheet O oj^ flue sheet O oyi Square feet of grate surface—24. heating surface in… … Fin. 13.—STAxnARi) American Freight Locomotive (Page 113.) CONSTRUCTION OF LOCOMOTIVES. II3 Weight: Weight of engine in working order 75,000 lbs. * on driving wheels 51,500 tender, empty 20,500 * STANDARD AMERICAN FREIGHT LOCOMOTIVE (fIG. 13). As Designed and Constructed by the Baldivin Locomotive…
