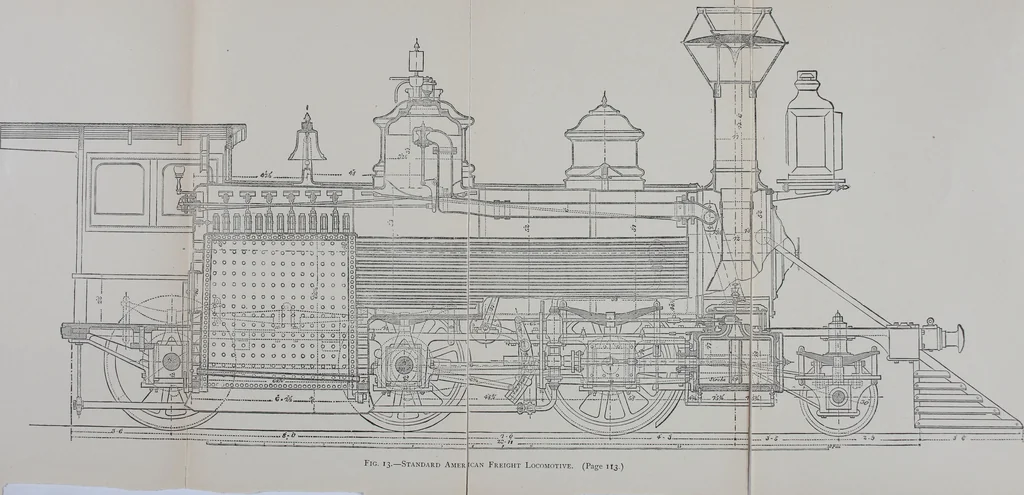

^ Square feet of grate surface—24. heating surface in fire box—112. heating surface intubes—933.Total square feet of heating sur-face—1065,Tender:Number of wheels—8. Diameter 2 6 tender-axle journals . , O 3jiLength ..07Capacity of tank 2200 gallonii If^^ … CONSTRUCTION OF LOCOMOTIVES. II3 Weight: Weight of engine in working order 75,000 lbs. on driving wheels 51,500 ** tender, empty 20,500 STANDARD AMERICAN FREIGHT LOCOMOTIVE (fIG. 13). As Designed and Constructed by the Baldwin Locomotive Works, Philadelphia, Pa.The principal dimensions are as…
