Modern American locomotive engines; their design, construction and management. A practical work for practical men (1883)
Edwards, Emory, b. 1841 · Bridgeport, Conn., Frederick Keppy · leaf 162

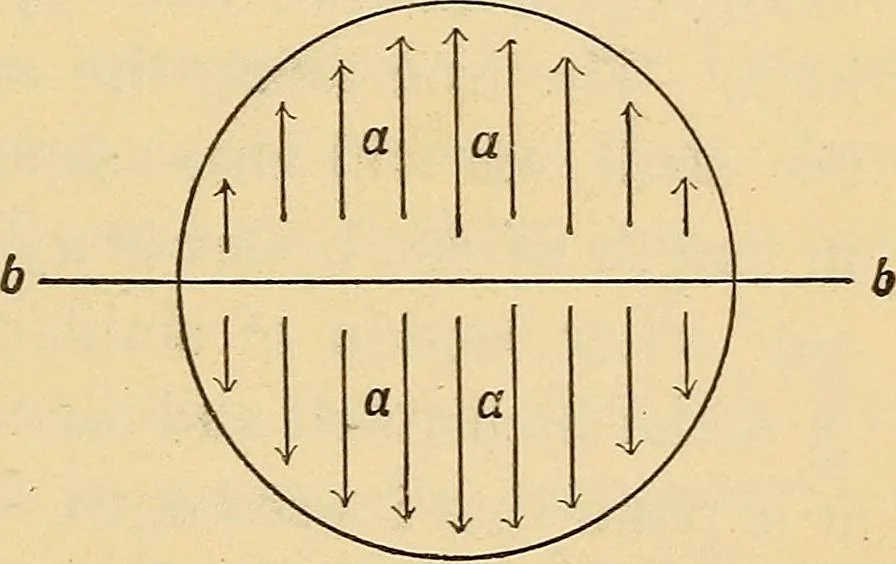

Fig. 32. Fig. 33. the arrows a^ a, a, a, in Fig. 33, that is, tending to liftthe top from the bottom. In Fig. 32 the pressurerepresented by arrow a is resisted by arrow a\ andsimilarly arrow b and b resist each other, and as each * Smith.(151) 152 LOCOMOTIVE ENGINES. equals the other, we may assume…
Locomotives
