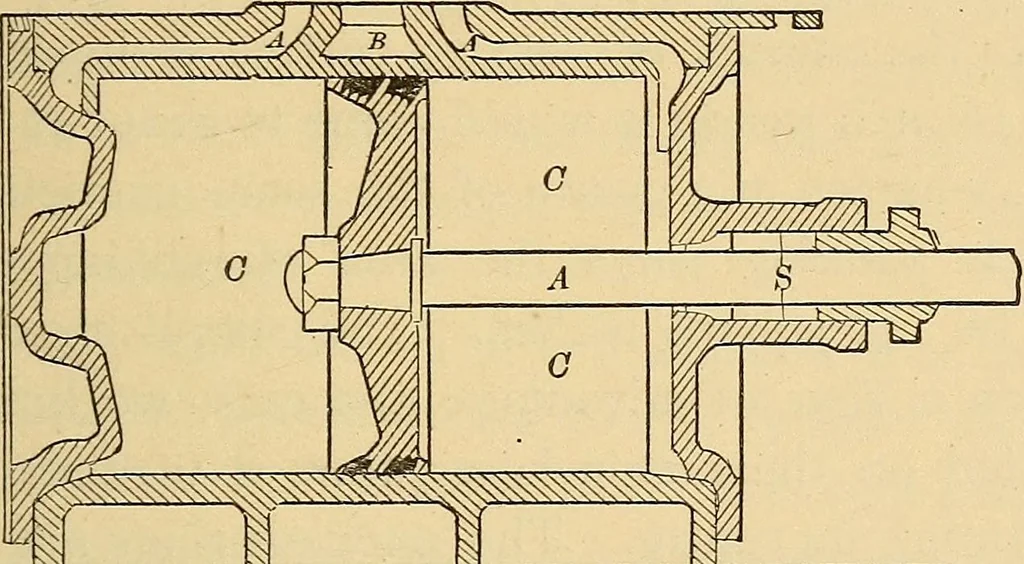

as been devised for keeping the piston steam-tight THE PISTON AND ITS RINGS. 211 under the high pressure employed in locomotive en-gines. The contrivance is thus described in a paperon an improved piston for steam engines: Threeseparate grooves, each y^ inch wide, ]^ inch apart, andfV inch deep,… … Fig. 68. in the piston, and are bent in rollers to the proper cur-vature, the diameter of the circle to which they arebent being about one-tenth larger than the cylinder.They are placed in the grooves in a compressed state,and along with the body of the piston are thus putinto the cylinder, care…
