Steam and its uses : including the steam engine, the locomotive, and steam navigation (1873)

Lardner, Dionysius, 1793-1859 · London : Lockwood & Co. · leaf 53

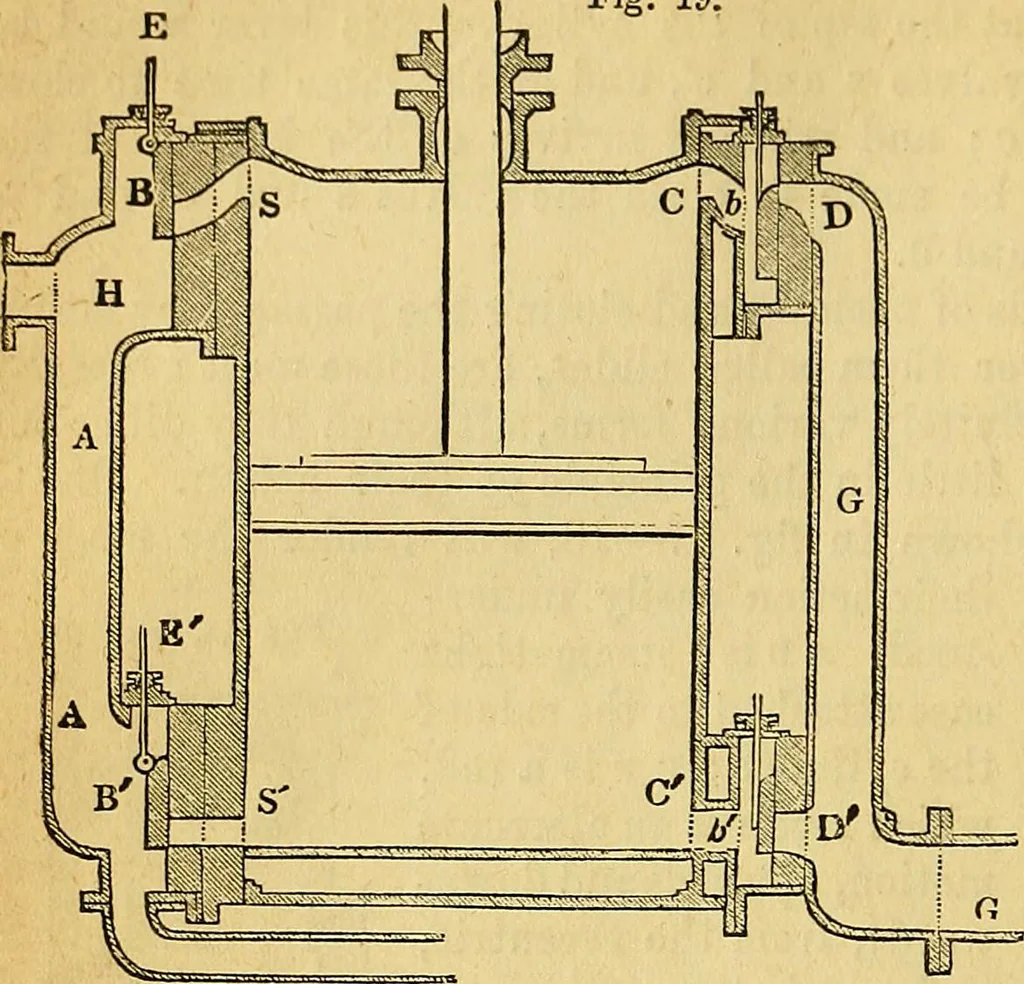

An illustration from Steam and its uses : including the steam engine, the locomotive, and steam navigation, 1873, leaf 53 — THE STEAM ENGINE. … 31. Another form of slides is shown in fig. 19. The steampipe proceeding from the boiler to the cylinder is represented at a a, and it com-municates withpassages s and sleading to thetop and bottomof the cylinder.These passagesare formed innozzles of iron orother hard metalcast upon the sideof the…

Steam-engines · Steam-navigation · Locomotives
