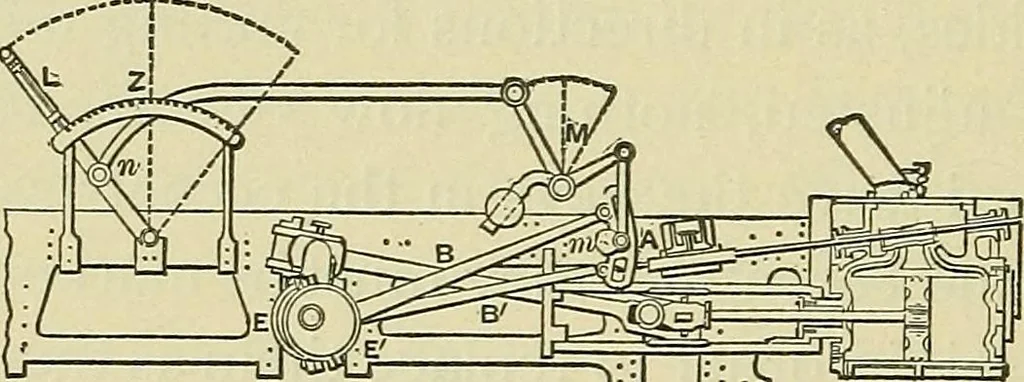

ts strapsand the rod B, tothe upper end of the link A, while the second isconnected in a similar manner with the lower end. Bymeans of the handle (reverse bar) L, and its connec-tions, and the counter-weighted bell-crank M, this linkcan be raised or lowered, thus bringing the i in onthe link block,… … iriH^ « Fig. 61. LINK-MOTION AND VALVE GEAR. I97 As shown in the cut, the engine is in position to runbackward. A number of notches, Z, into either ofwhich a catch on L can be strapped, enable the en-gineer to place the link in any position he choses. Inintermediate positions between full-gear and…
