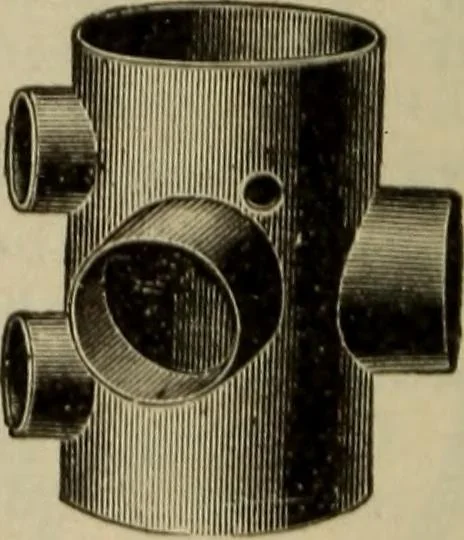

MAKING CRESCENT CRANK HANGER.STAGE 4. supports being about six inches above andbelow the crown, it sustained a weight of3,500 pounds without deflection. THE CRANK HANGER. The crank hanger is of the one-piececonstruction, and is made from a five-inchdisk of sheet steel, which is drawn intothe shape… … 48 MAKING CRESCENT CRANK HANGER.STAGE 5. diagonal stay, are then drawn and formedupon it, this, however, requiring a totalof twelve operations to complete it. Thepart requires annealing after every opera-tion, the process of drawing and forminghaving a tendency not only to lengthenthe fibre of the…
