Modern cabinet work, furniture & fitments; an account of the theory & practice in the production of all kinds of cabinet work & furniture with chapters on the growth and progress of design and construction; illustrated by over 1000 practical workshop drawings, photographs & original designs (1922)
Wells, Percy A, Hooper, John, b. 1882 · Philadelphia, J.B. Lippincott Company · leaf 317

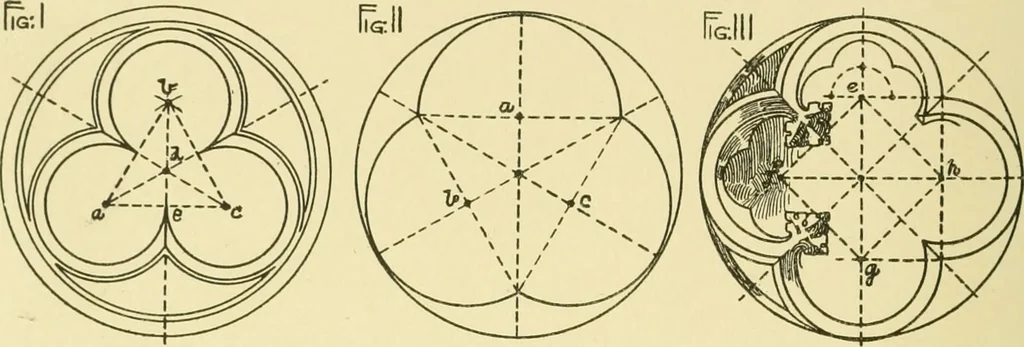

RK, FURNITURE, AND FITMENTS the spaces in tracery ; f. I. shows a circle trefoiled, and this is obtained bydrawing the equilateral triangle a be, and in bisecting each side and drawinglines through these points to the opposite apex; from a, with radius ac, de-scribe a circle, also from points b and… … Diagrams illustrating Trefoiled Circles. A Quatrefoil with Cusping. from a, b, and c, which are the bisecting points of each side. Fig. III. is the Quatrefoil. Draw a square with diagonals produced, bisect each side, and drawe,f, g, h ; then from these points describe the foils. The leaf shape…
Cabinetwork · Furniture making
