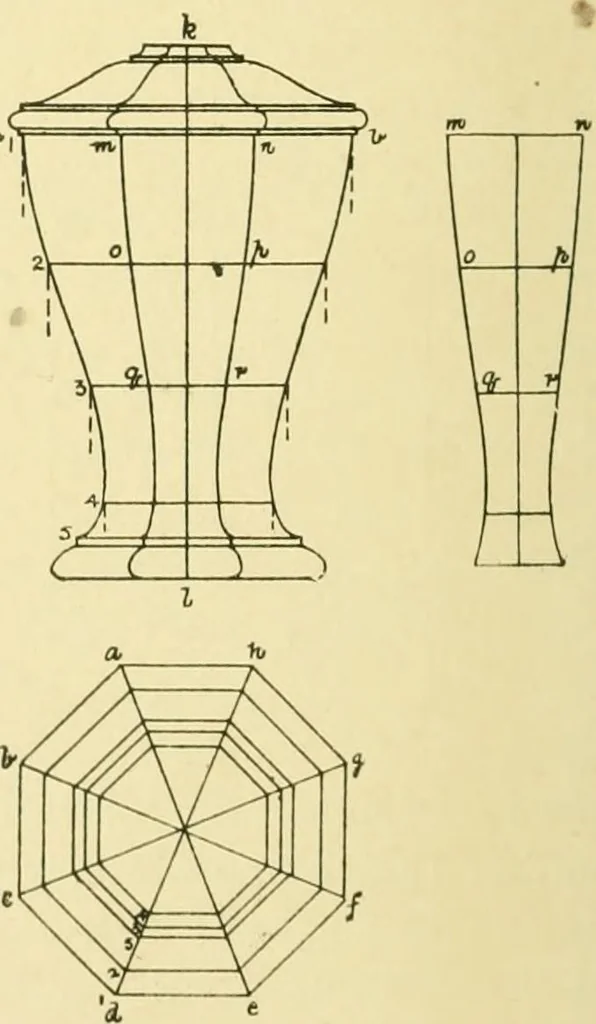

4, &c. From reference line No. 2, drop a perpendicular cut-ting the diagonals bf and eg in plan, and con-tinue also with 3, 4, and 5. These lines are now drawn parallel to each side of the octagon, and represent sectional plans of the elevation on the cutting planes or reference lines. Project… … PRACTICAL SETTING OUT AND APPLIED GEOMETRY 245 To Develop one Surface.—This method will be understood from thedescription given in the previous example ; draw the centre and reference lines,when the points for the curves are obtained by measuring the distance of/// ;/ op, &c, from the centre…
