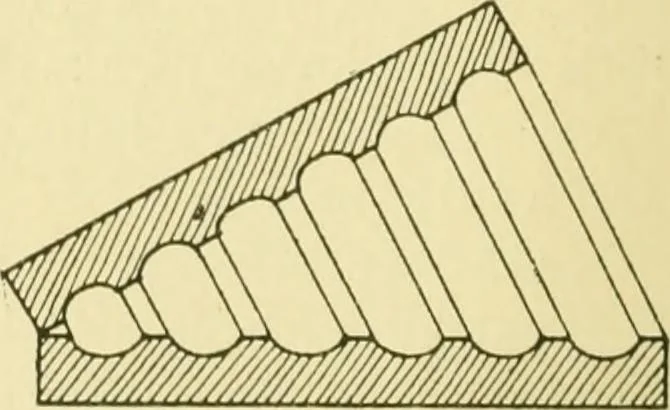

o that a circle or semicircle can be easily divided up into twelve or six equal parts, as in f. 1, p. 25. This would be handy in setting <mt tops for veneering. As the angle BAG isoxidegs., or a right angle, D would be a line at 60 degs., and C one at 30 degs. A mitre, or line at 45 degs.,… … Method of Dividing FlutedPilasters in Equal Pro-portions. DRAWING—GEOMETRY—PERSPECTIVE, ETC. 27 more arcs from A and c, cutting each other in D. Through D draw a line intothe corner at B, which will be the mitre line. The half mitre is obtained bybisecting the lower portion. Again, a line at 60…
