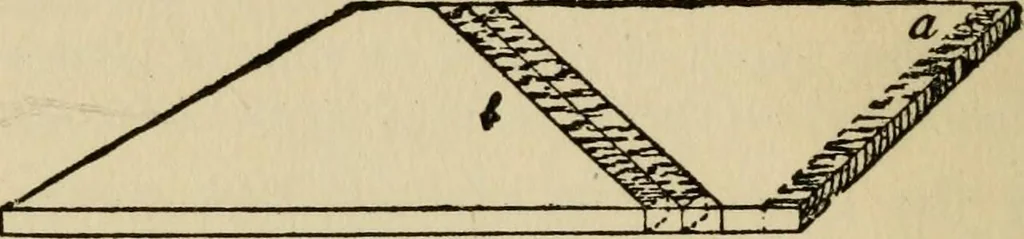

tongue is thus procured.If a feather tongue is to be used it is cut diagonally fromthe board (6) and the ends cut square as shown by the dottedline. Feather Tongues can be obtained in fairly long lengthsout of narrow boards, whilst on the other hand crosstongues are limited by the width of the… … Fig. 121.—^Method of Marking Out for Cross Tonguesand Feather Tongues. a plumbers ladle is generally used to pour the glue intothe grooves, and it is usual to glue the tongue into one
