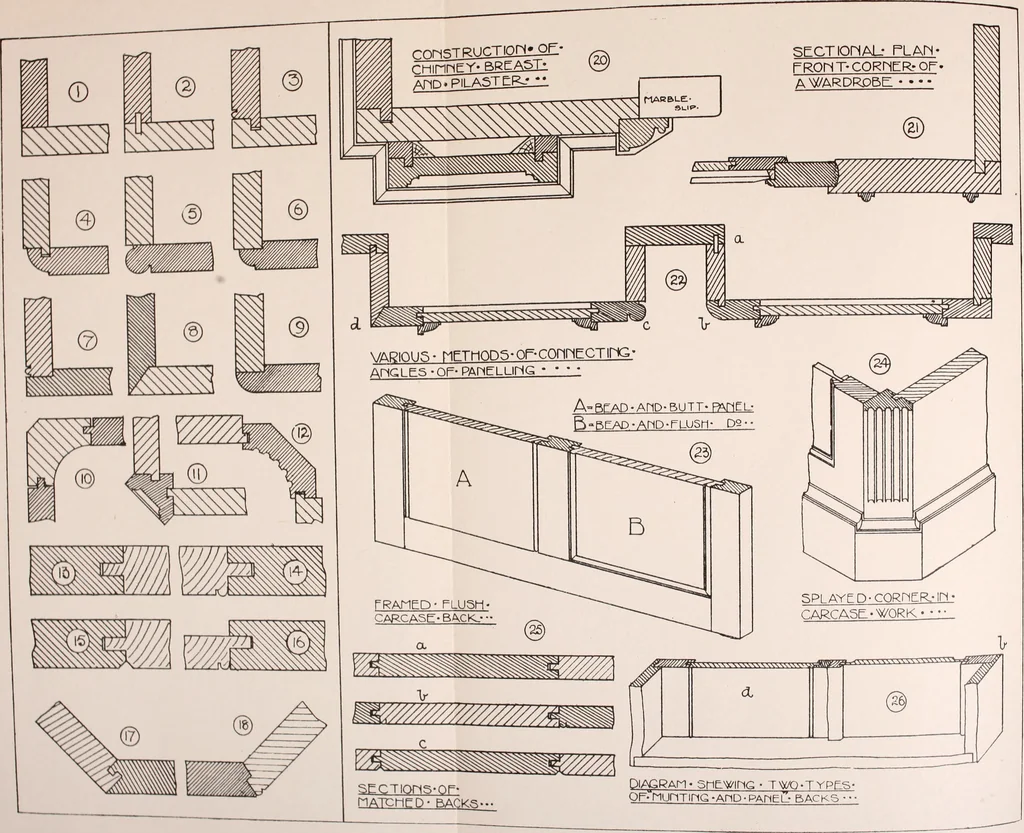

in curved work; see f. 13, orwith dowels, as shown in f. 16. Dowelled Mitre, f. 10.—This has similar uses to the above, where bothsides of the angle are seen, and secret fixing required. Braced Mitre, f. 11.—This is used chiefly for strengthening plain mitresin framings, such as moulded panel… … Framing Joints. [To face pag**1 JOINTS AND THEIR APPLICATION 47 FRAMING JOINTS. A Butt or Square Joint, f. 1, is usually secured by glueing and nailing.This joint when used as an external angle in framing would be secret-screwedor screw-nailed if for painted work. A Tongued Joint, f. 2, is chiefly…
