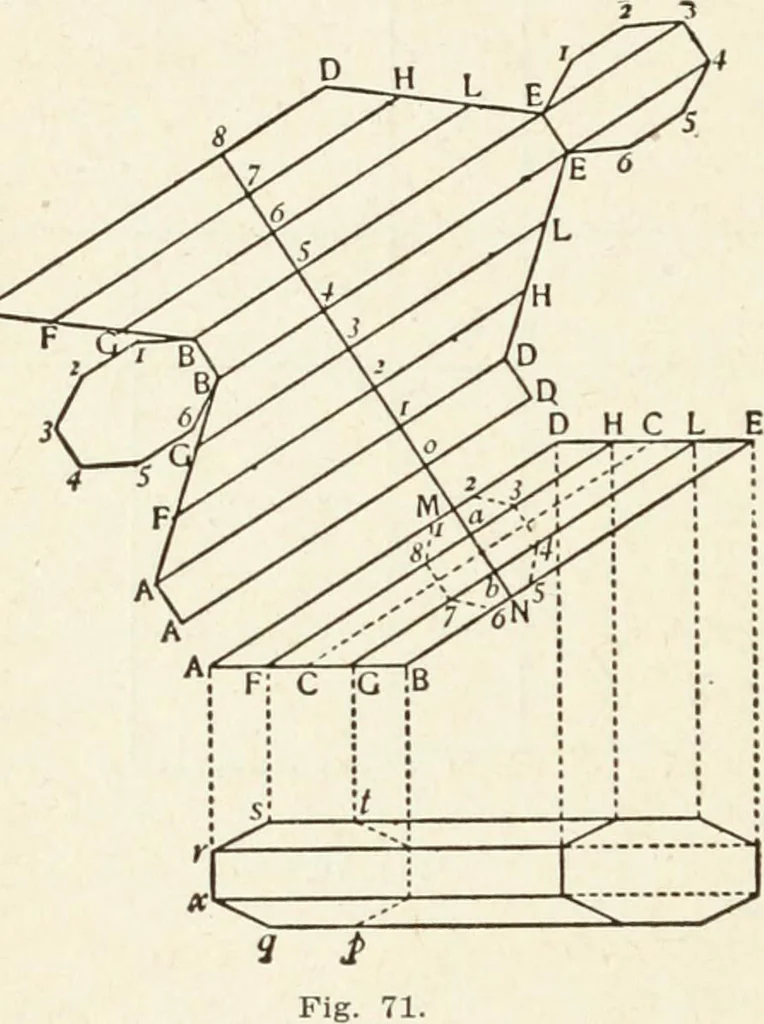

ularly to the axis, and indicated by thefigures 1 and 8. Produce the sides 1 2, 6 5, parallel tothe axis, until they meet the lines A B, D E. Theselines then indicate the four arrises of the prism, cor-responding to the angles 12 5 6. Through the points 102 MODERN CARPENTRY 8 3 7 4 draw lines… … and the lines AD, F H, G L, BE their length. Fromthis profile can be drawn the horizontal projection, inthe manner shown below. To trace the development ofthis prism on a sheet of paper, so that it can be folded *In Fig. 75 another example is given, but as the method ofprocedure is the same as in…
