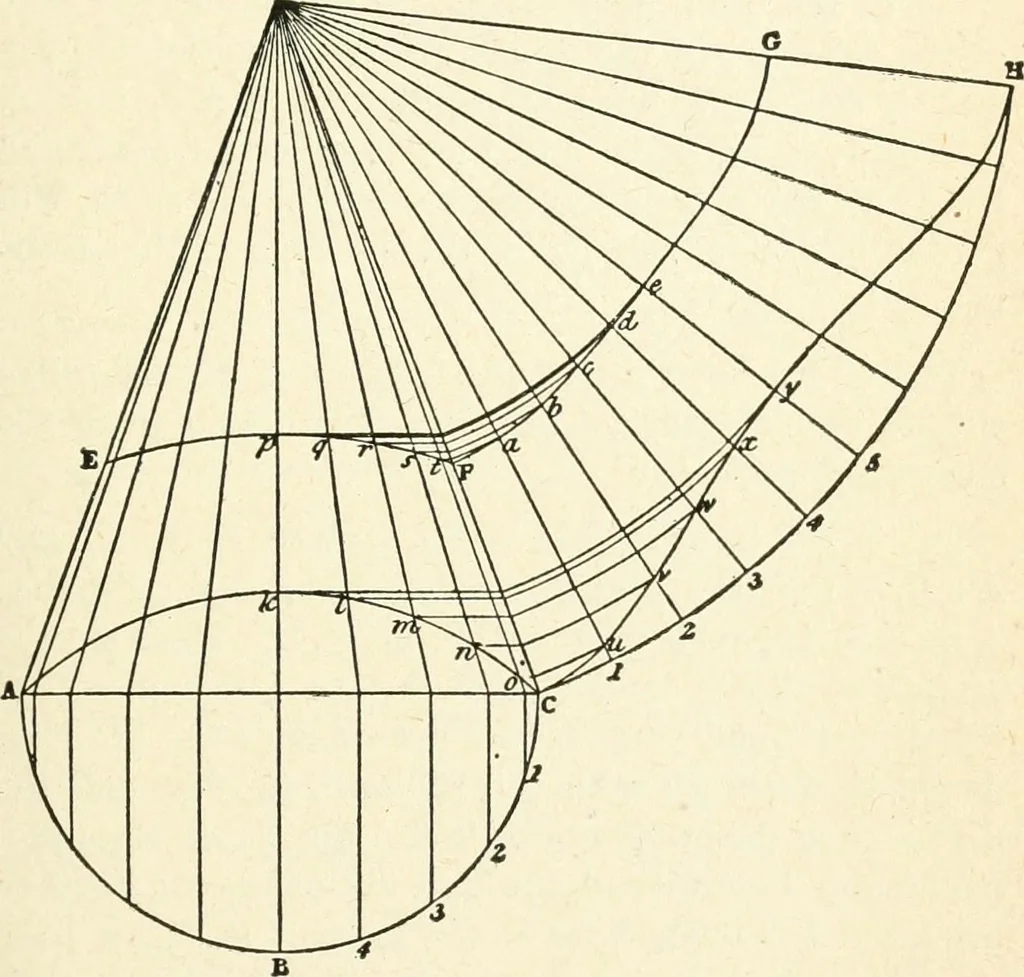

4, and 5 give the vertical projections of the hy-perbola and parabola respectively. p W \ ^ m \ \ M I—1 / V ) £ Fig. 79. To find the covering of the frustum of a cone, thesection being made by a plane perpendicular to theaxis. Let A C E F (Fig. 79) be the generating section of SOLID GEOMETRY 111… … Fig. 80. the arc F G. Divide the semicircle ABC into anynumber of equal parts, and run the same divisionsalong the arc C H; draw the line H D, cutting E G inG; then shall C H G F be half the development of thecovering of the frustum A C F E. 112 MODERN CARPENTRY To find the covering of the frustum…
