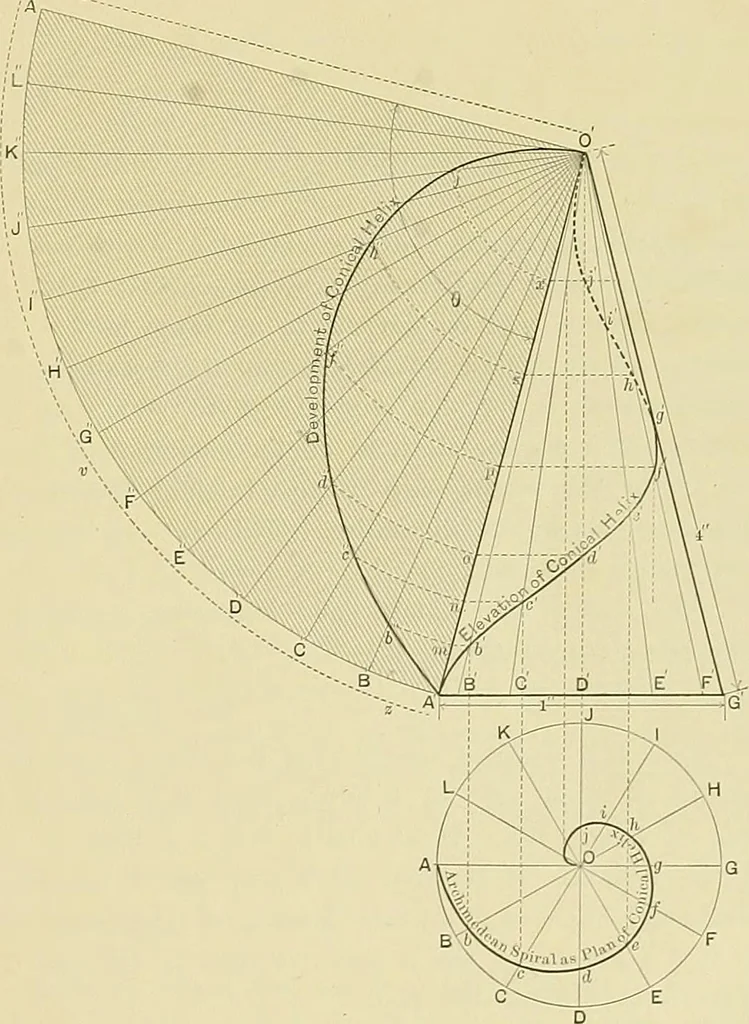

the proportion 0 A : 0 A ::6:360°, since the arc AG A must equalthe entire circumference of the cones base. The student can make a paper model ofthe cone and helix by cutting out a sector ofa circle, making allowance for an overlap on which to put the mucilage, as shown by the dottedlines 0y and… … 66 THEORETICAL AND PRACTICAL GRAPHICS. The development of the conical helix is evidently the same kind of spiral as its orthographicprojection. PARALLEL CURVES. 192. A parallel curve is one whose points are at a constant normal distance from some othercurve. Parallel curves have not the same…
