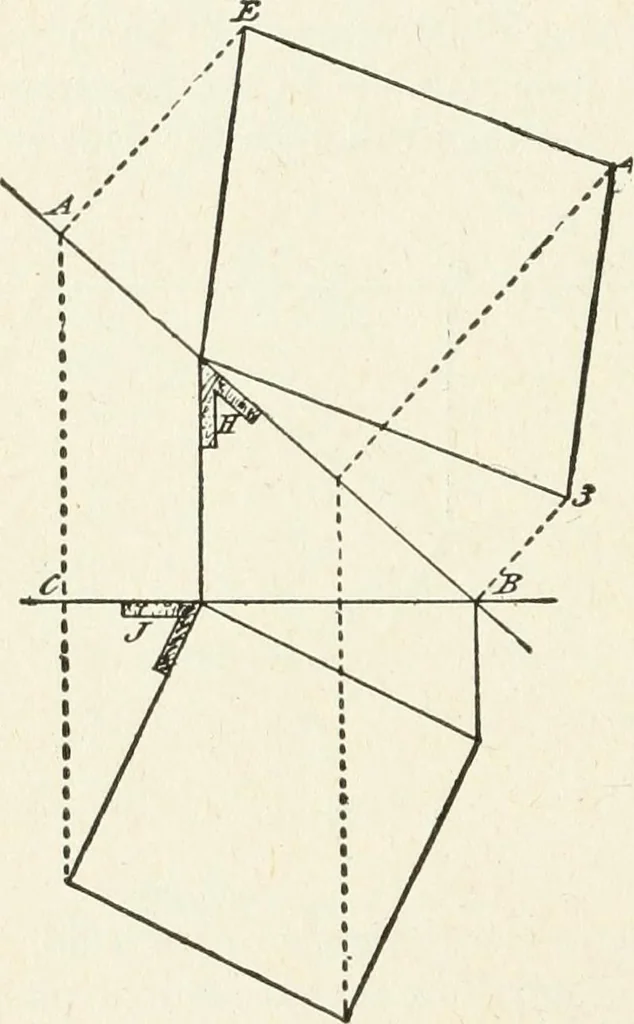

d cut it in the directionof BE; the section it makes is shown by BEFH;simple as this is, it still gives the idea of what is mean/^y projection. 142 MODERN CARPENTRY Fig. 9 shows the section of a square bar which hasbeen cut by two unequal pitches, say in the directionof bevels J and H; the line C B… … Fig. 9. Fig. 10 shows the sides of a square bar which maybe any length. The bar is to stand perpendicular, andpass through a plank that inclines at A B; the learner PRACTICAL SOLUTIONS 143 is now required to show on the surface of plank theshape of a mortise that shall exactly fit the bar.
