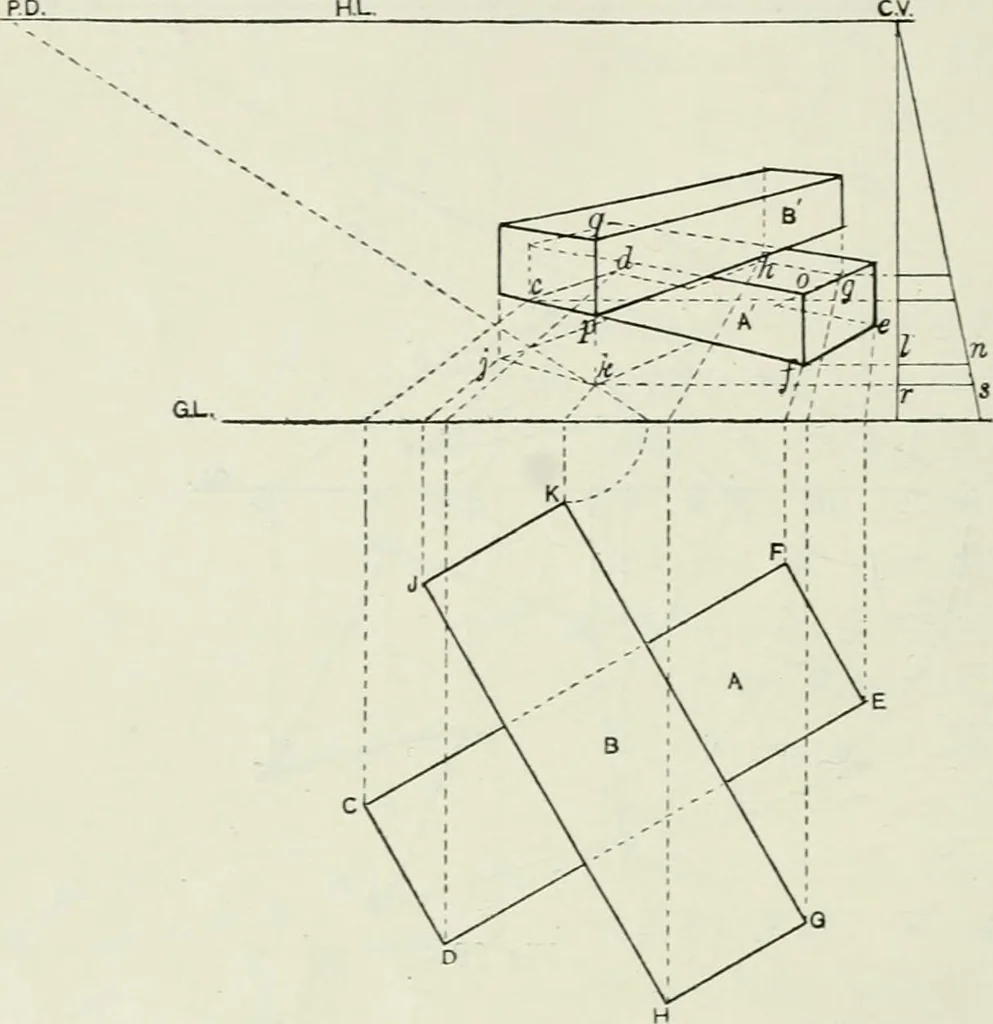

position on plan, it is required to draio the same in perspec-tive.Distance of P.P. = 11. Height of eye = 5. Scale \ = V.Fig. 89. Find the positions of the points c, d, h, g, e,f, k,j on the groundplane by the method described in Prob. 36. COMPLETE PERSPECTIVE COURSE CHAP, Draw a perspective scale… … Fig. 89 Determine the heights of the other vertical edges of A in asimilar manner, and complete the solid. To determine the height of the solid B, draw a horizontalline from h through the perspective scale to find rs. Draw aperpendicular at k, and set off kp and 2>9., each equal to rs. Findthe…
