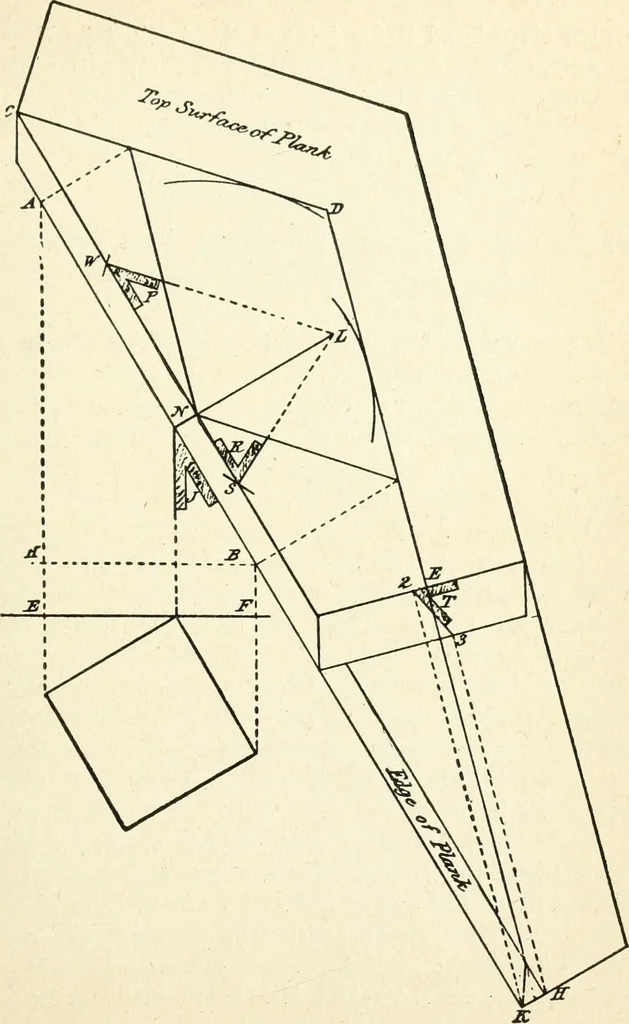

D on the surface makes a verydifferent pitch to that of A B on the edge of plank, andthat C D differs from both. To understand these points thoroughly is the truesecret of the nicest element in the joiners art—handrailing. It being clear that two bevels are requiredone for each pitch—proceed to… … Fig. 11. 146 MODERN CARPENTRY which gives bevel R for joint at E. Again take N ascentre, and strike an are touching line D C; with sameradius, and L centre, make the intersection in W; joinit and L, which gives bevel P for joint at C; the cutsbeing made by these bevels. PANELLED CEILINGS IN WOOD…
