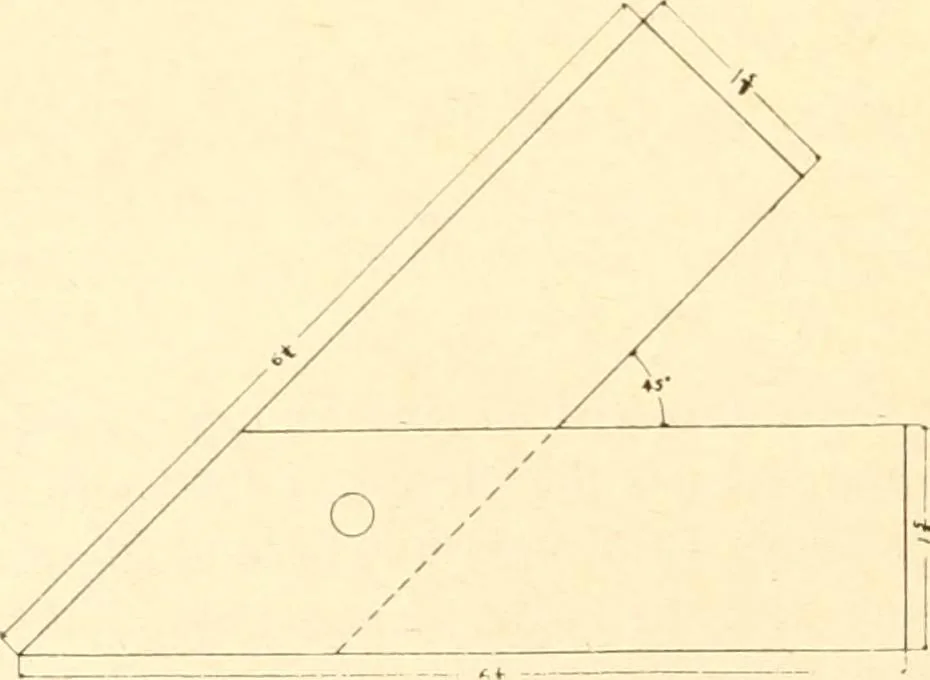

Theends projecting at the angle of the joint may be dressed downto an even surface,, the length of the ends being measured offfrom the angle of the joint. Draw a line around and saw theends to the line using the back saw. No dressing of the out-side surfaces is to be done after the work has been… … Fig. 58. the joint is 45 degrees as shown in Fig. 58. The work of MANUAL TRAINING 39 planing out the piece i;/8 inches square and 14 inches long-is to be done in the same order as in the preceding exercise.The bevel square is to be set at an angle of 45 degrees, whichmay be done easily by placing…
