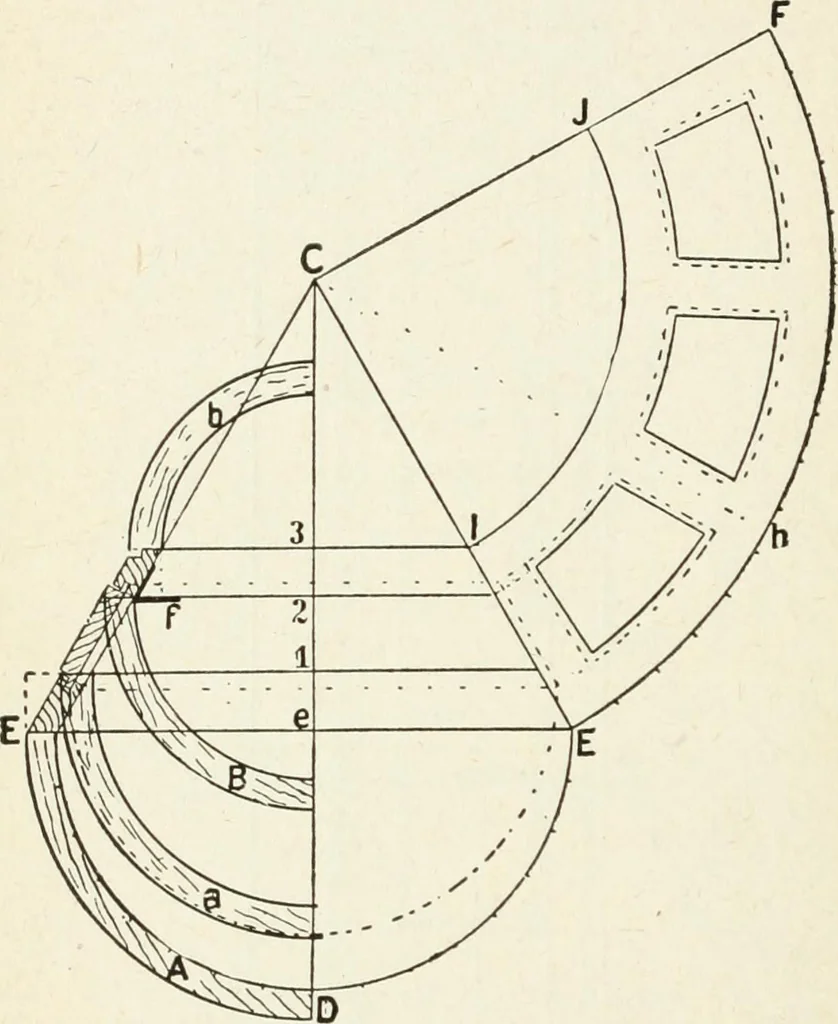

Pig. 41. in two pieces joined at the crown and springings. Therails are worked with parallel edges, their centre linesradiating from the centre of the elevation. Edge 1,76 MODERN CARPENTRY moulds only are required for the stiles, and a- developedinould for the panels. The method of obtaining… … Method of Obtaining Moulds for Circular SplayedLinings.Fig. 42. To Obtain the Face Moulds for the Soffit Stiles.Draw the line E E, Fig. 42, and produce the faces of PRACTICAL SOLUTIONS 177 the jambs until they meet in point C. From C drawthe line C D perpendicularly to E E. This line willcontain…
