The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry (1852)

Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 275

An illustration from The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry, 1852, leaf 275

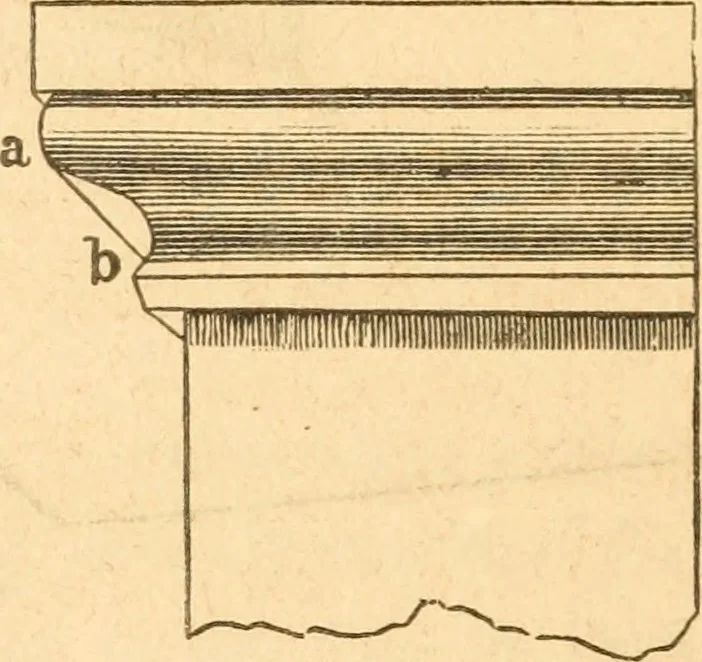

Fig. 307. Fig. 308. 408.— To find the line of shadow on mouldings and other ho-rizontaUy straight projections. Fig. 305, 306, 307 and 308,lepresent various mouldings in elevation, returned at the left, inthe usual manner of mitreing around a projection. A mere in-spection of the figures is…
