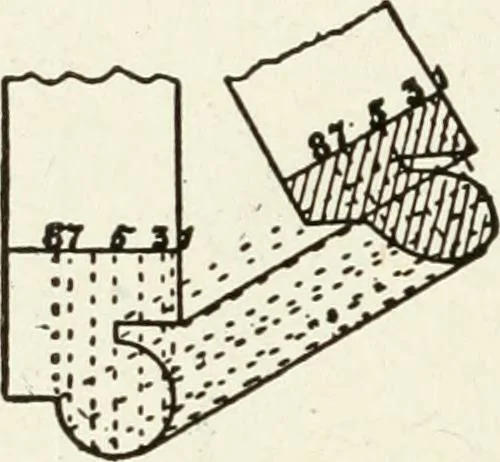

and windows.The horizontal section being the more readily seen, isusually decided first. Let the profile in Fig. 50 repre-sent this. Divide the outline into any number of parts,and erect perpendiculars therefrom, to cut a horizontalline drawn from the intersection of the back of themoulding v/ith… … Fig. 51. lars to the rake, to meet lines parallel to the edges ofthe inclined moulding drawn from the correspondingpoints of division in the profile, and their intersectionswill give points in the curve through which to drawthe section of the raking mould. When the pedimentis broken and a level…
