Common-sense stair building and handrailing (1903)
Fred T Hodgson · Frederick J. Drake and Co. · leaf 121

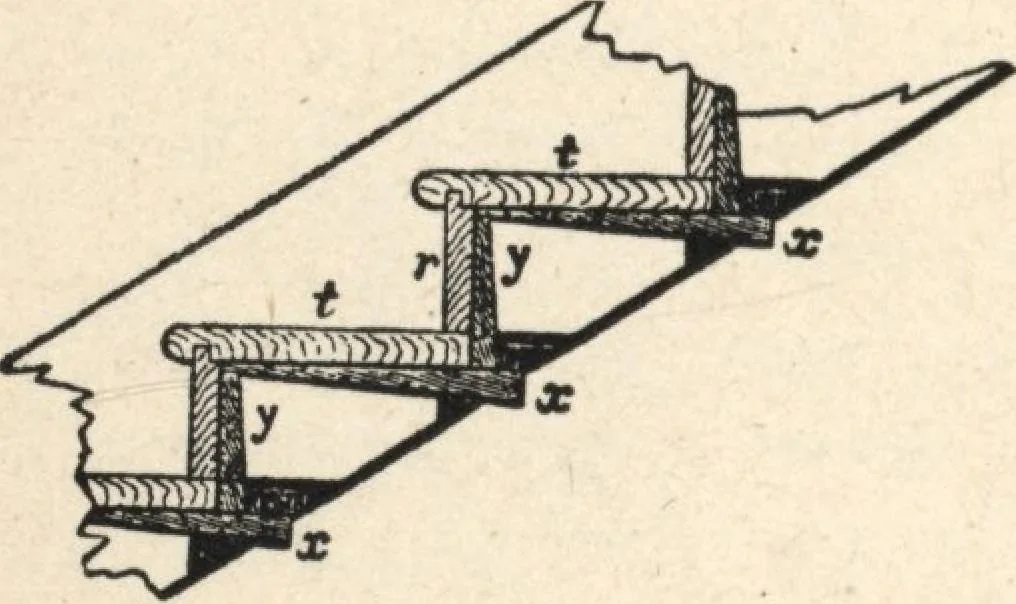

ng shown in Fig. u exhibits a wide tread atthe bottom, a circumstance that sometimes happens—though a change of pitch should always be avoidedwhere possible—and the string is widened out by hav-ing pieces glued to it, so that it can be eased-offwith a gentle curve, as shown. There is also an… … Fig. 12. FOURTH METHOD where the treads t and the risers r are shown in posi-tion and secured in place by means of wedges, x, j,which should be well covered with good glue beforebeing inserted. Sometimes treads are formed with two tenons at each end which
Wood stairs and railings · Woodwork · Architecture, Domestic · Designs and plans
Internet Archive · Building Technology Heritage Library · Public Domain Mark 1.0. Free to use for anything.
