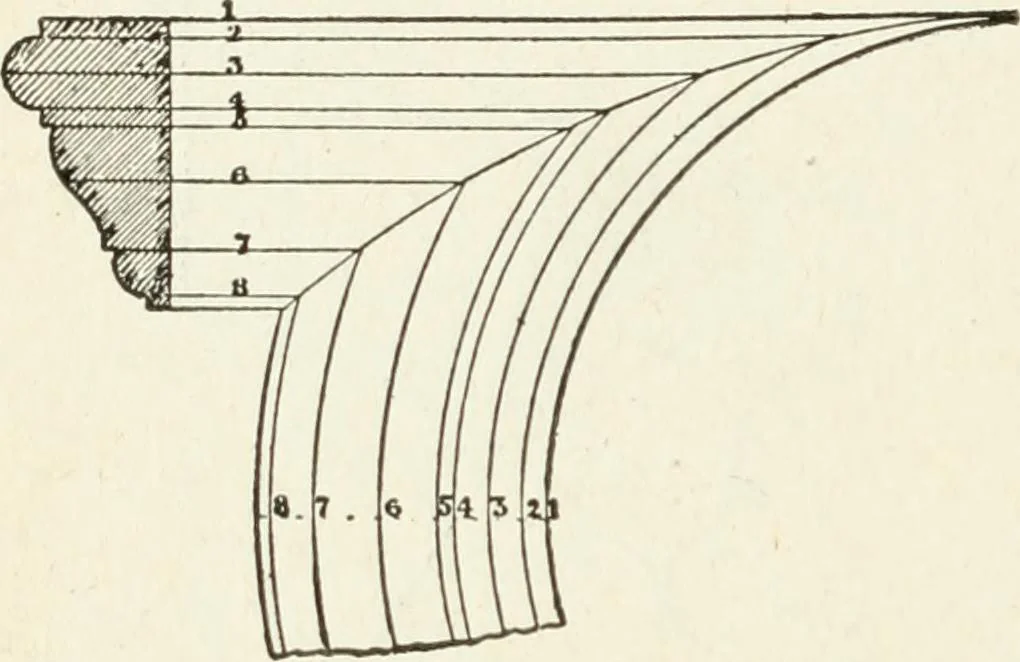

its 186 MODERN CARPENTRY profile into any number of parts, and from them drawparallels to the edges intersecting the mitre line. Fromthese intersections describe arcs concentric with theplan of the curved mould, and at any convenient pointthereon draw a line radial from the centre.… … Fig. 53. the curved moulding B. When it is required that thesection of both mouldings shall be alike, a circularmitre is necessary, and its true shape is obtained asshown in Fig. 53. Draw the plan and divide the profileof the straight moulding as before, drawing parallelsto the edge towards the…
