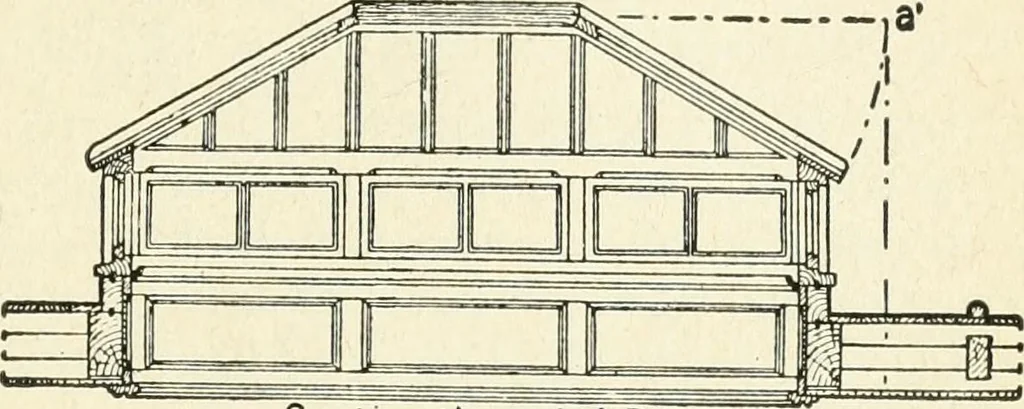

A^H Fig. 110. Fig, 110, the methods of obtaining the lengths andbevels of the hip rafters are similar to those describedfor getting hip rafters. When the roof-lights mitre PRACTICAL SOLUTIONS 235 against one another, the sizes of* the lights and thebevels of the angle stiles which mitre together… … Section through AB Fig. 111. curved outline, the shapes of the hip rafters or angle-stiles, as well as the developed surfaces, are obtainedas explained before. Lay-Lights. At the ceiling level of roof-lights usedfor staircase wells, or in similar positions, it is often
