Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 240

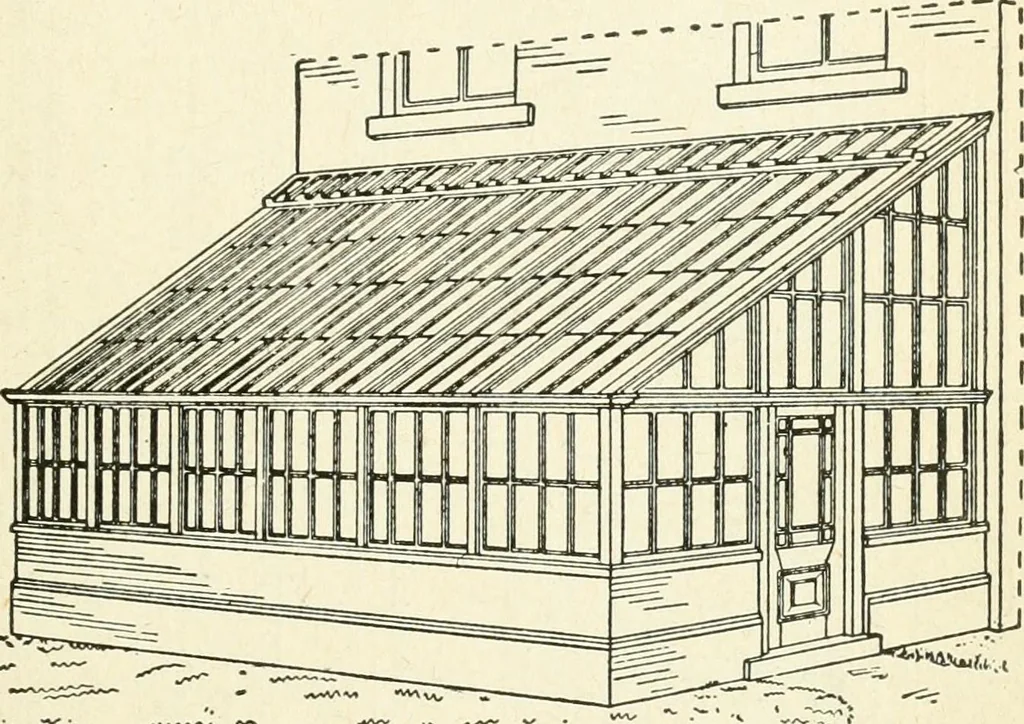

of the roof (Fig. 115)—is made as a sep-arate light, which overlaps the upper edge of the fixedlower light. Additional ventilation is secured by ar-ranging the side sashes to open. PRACTICAL SOLUTIONS 237 The above description is intended merely to outlinethe broad principles of the construction of… … ^«;, ^^.v..- Fig. 115. A Bay Window with solid frame and casement lightsis shown in Fig. 116 to 118. Two methods of fittingsuch a window, with folding shutters, are given inthis plan. In the half plan at C, the shutters foldinto a boxing projecting into the room, and at D theyfold back upon the…
Carpentry
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
