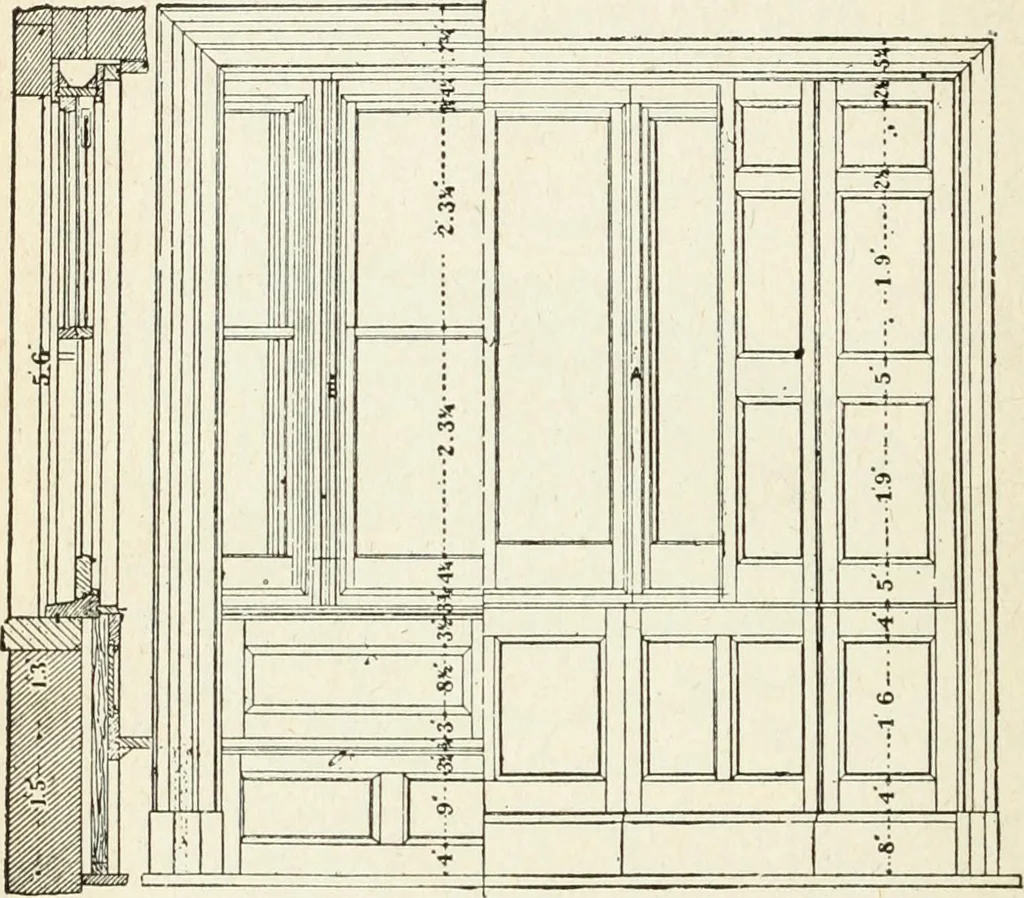

s of fittingsuch a window, with folding shutters, are given inthis plan. In the half plan at C, the shutters foldinto a boxing projecting into the room, and at D theyfold back upon the face of the wall, which is splayedto receive them. The sills of the frame are mitred at 238 MODERN CARPENTRY the… … Hfi^foioac/m. M)2Jialf ULVde OeYOJun.orXoi, Xoi. Insist eleralwa tflTo/i Fig. 116. coach screws. The jambs are tenoned and wedged intothe head and sill. The transom tenoned into the jambsand mullions, and secured with bolts. The mnllionsmay be worked in one piece as shown at D, or builtup as at C,…
