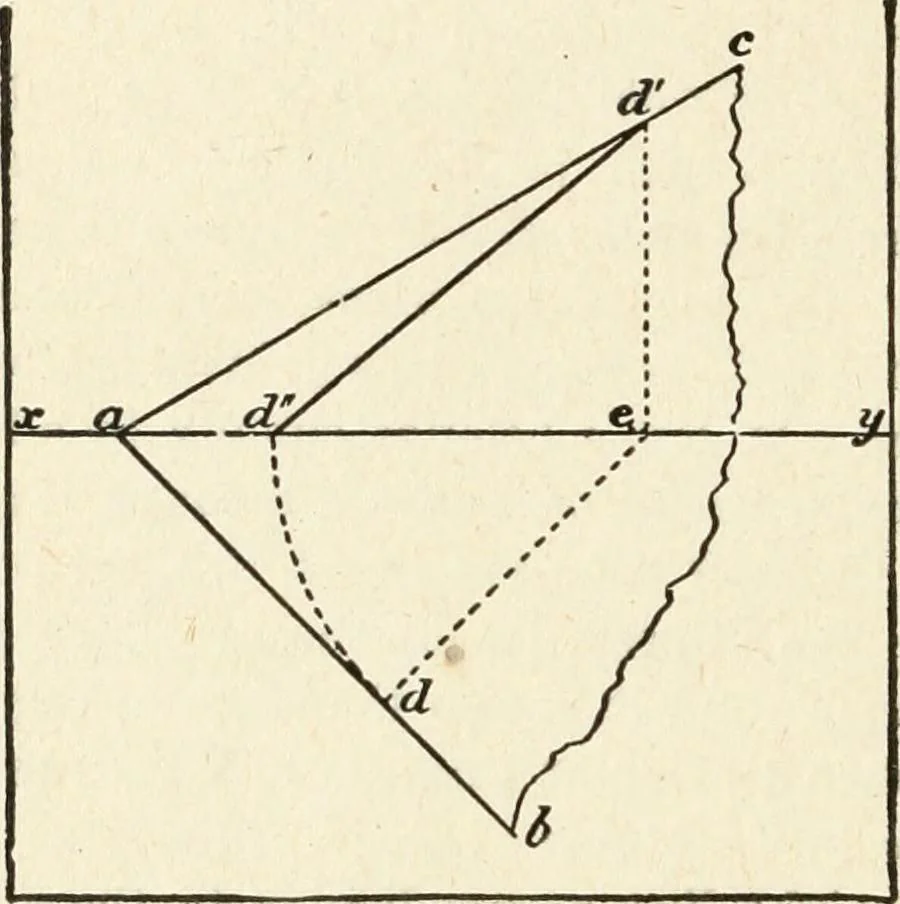

on. Take any conven-ient point d in a b, and from it draw d e perpendicularto ab, and cutting the line of intersection xy ine, from e draw e d perpendicular to x y and cuttinga c in d. The angle made by the given plane withthe horizontal plane of projection is such that, witha base d e, it has a… … Fig. 9. VII. The traces of a plane and the projections ofa point being- given, to draw through the point aplane parallel to the given plane. In the perspective representation (Figs. 10 and 11)suppose the problem solved, and let B C be the given *The angle made by a plane with the vertical plane of…
