Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 52

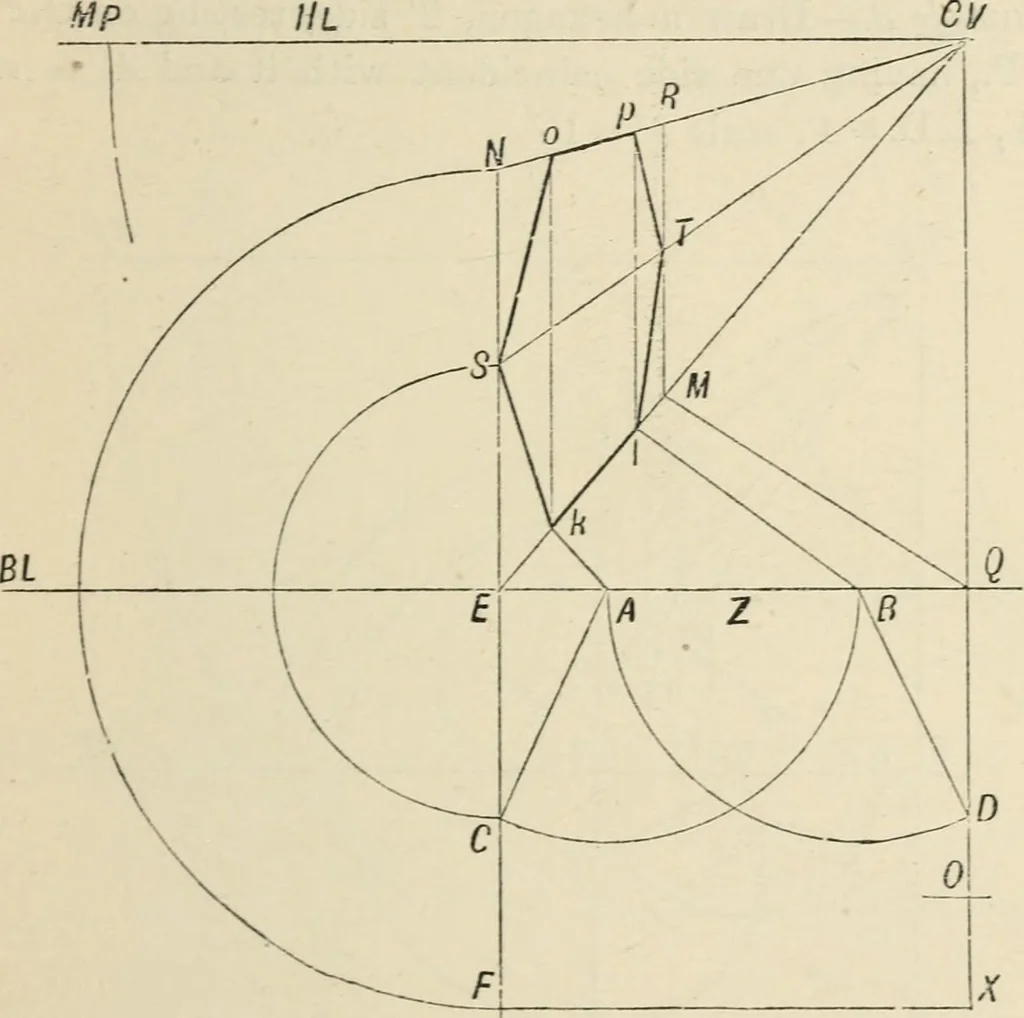

gh C draw CE parallel to AY; draw also DWF parallelto AY. Join CC.V, A C.V., B C.V. and D C.Y. ; alsoL MP and K MP, cutting C C.V. in N and P. ThroughN, P draw NT and PY : parallel to AB : join SP, PA, TVand VB, then STVBAP is the hexagon required. For PC = THE HEXAGON. 49 CK = CG, and NP = LK =… … Fig. 28. Here take E 4 to left, and for plan of the hexagon wemay proceed as follows :—Bisect EQ (4) in Z, also EZ, QZin A, B respectively; with centre A and distance ABdescribe arc BC; similarly, draw arc AD. Draw EC andQD, perpendiculars to AB at E and Q respectively, meetingarcs in C and D ;…
Geometrical drawing · Perspective
