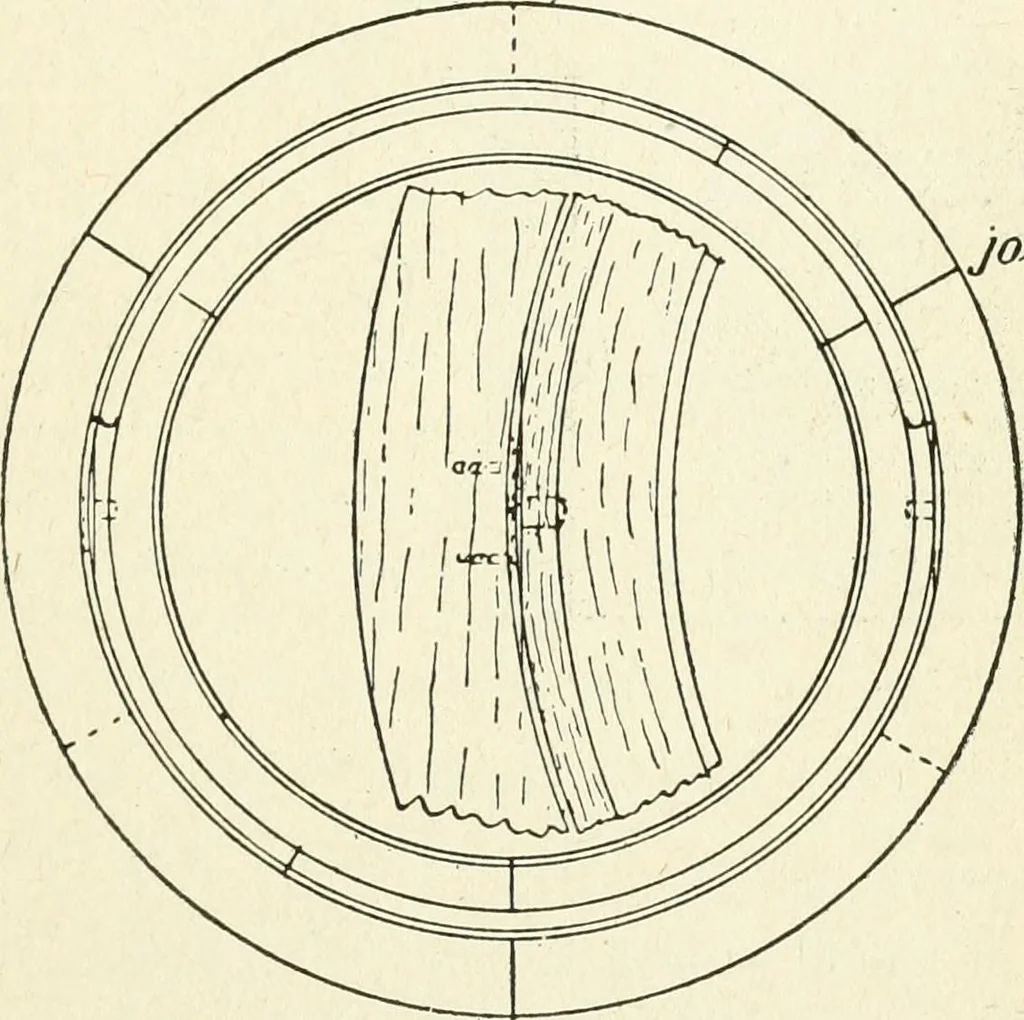

4). In this ease the sash must be drawn out andrested upon the pin, then the bead laid on it andmarked as before, the intersection a giving the mitrepoint. PRACTICAL SOLUTIONS 247 A BuUs-Eye Frame with a pivoted sash is shown inFigs. 125 and 126 and enlarged detail of the joint. Thisframe is built… … joint Fig. 126. and cut off in two lengths. The sash is made in threepieces, with butt radial joints bolted together. To en-able the sash to open, a plane surface must be providedat the centre, equal to the thickness of the sash andbeads, as shown by the dotted lines. Having fitted thesash in, and…
