Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 258

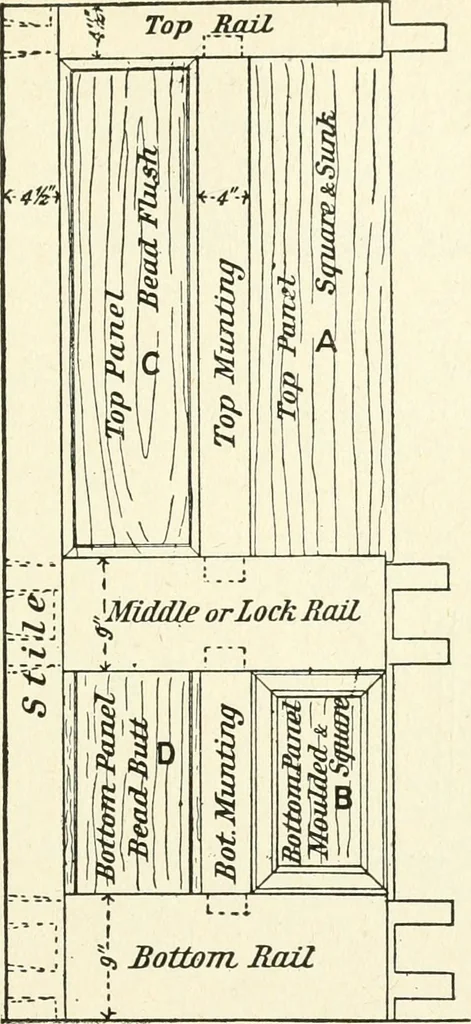

es of this de-scription it is usual to stub tenon the braces into therails, in which case they must be inserted first andwedges up with the framing. Framed or Panelled Doors are of several kinds, dis-tinguished by the number or treatment of their panels,or by the arrangement of the mouldings, as… … Fig. 13S. B Fig. 139. Moulded and Square. When one side of the panel ismoulded and the other plain, as at B. Bead Flush. When one side of the panel is flush, ornearly so, with the frame, and with a bead workedround the edges to break the joints, as at C. 256 MODERN CARPENTRY Bead Butt. When the…
