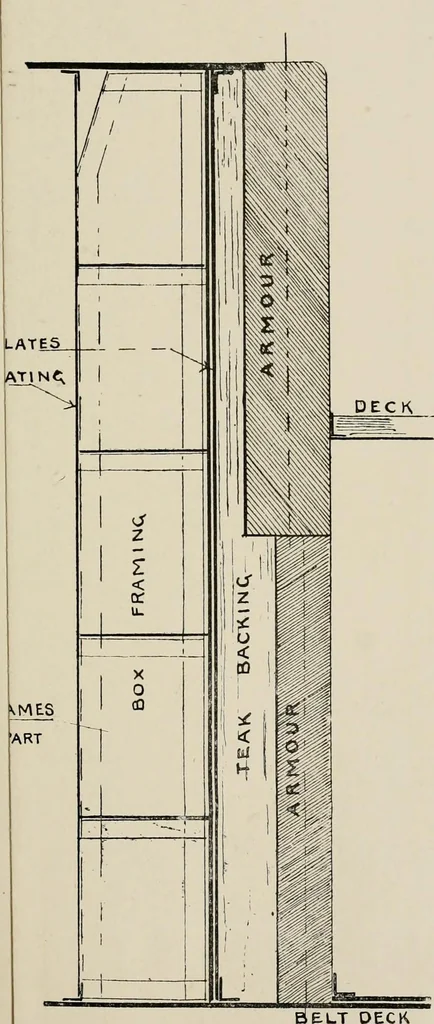

op, bottom, surface,and sight moulds of each plate, for ordering the armour. The buttsare on the frames as before explained. Revolving Armoured Turret or Redoubt.—An armouredrevolving turret carrying guns is occasionally fitted inside of abarbette of the form of Fig. 130 or Fig. 131. In Fig. 132 is… … ELT DECK Fig. 131.FORE AND AFT SECTIONAL ELEVATION.
