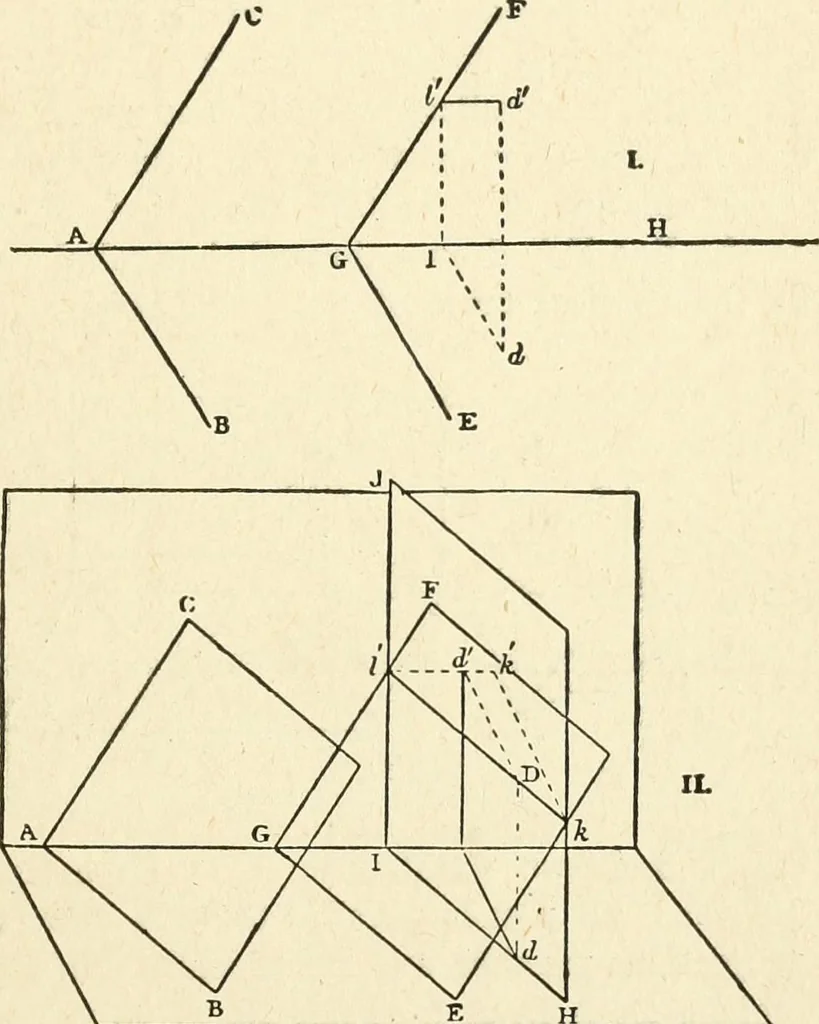

agine thepart above x y in Fig. 9 to be the horizontal projection andthe part below x y to he the vertical projection—in otherwords, if Fig. 9 is turned upside down—a b becomes thevertical trace and a c the horizontal trace, and the angle dd € is the angle made by the given plane with the… … I. Vertical and Horizontal Piojectioiis. II. Perspective View Fig. 10. on the plane E F, draw the vertical plane H J, thehorizontal trace of which, I H, is parallel to G E.The plane H J cuts the plane E F in the line k V ,.andits vertical trace GF in 1. The horizontal projection 24 MODERN CARPENTRY…
