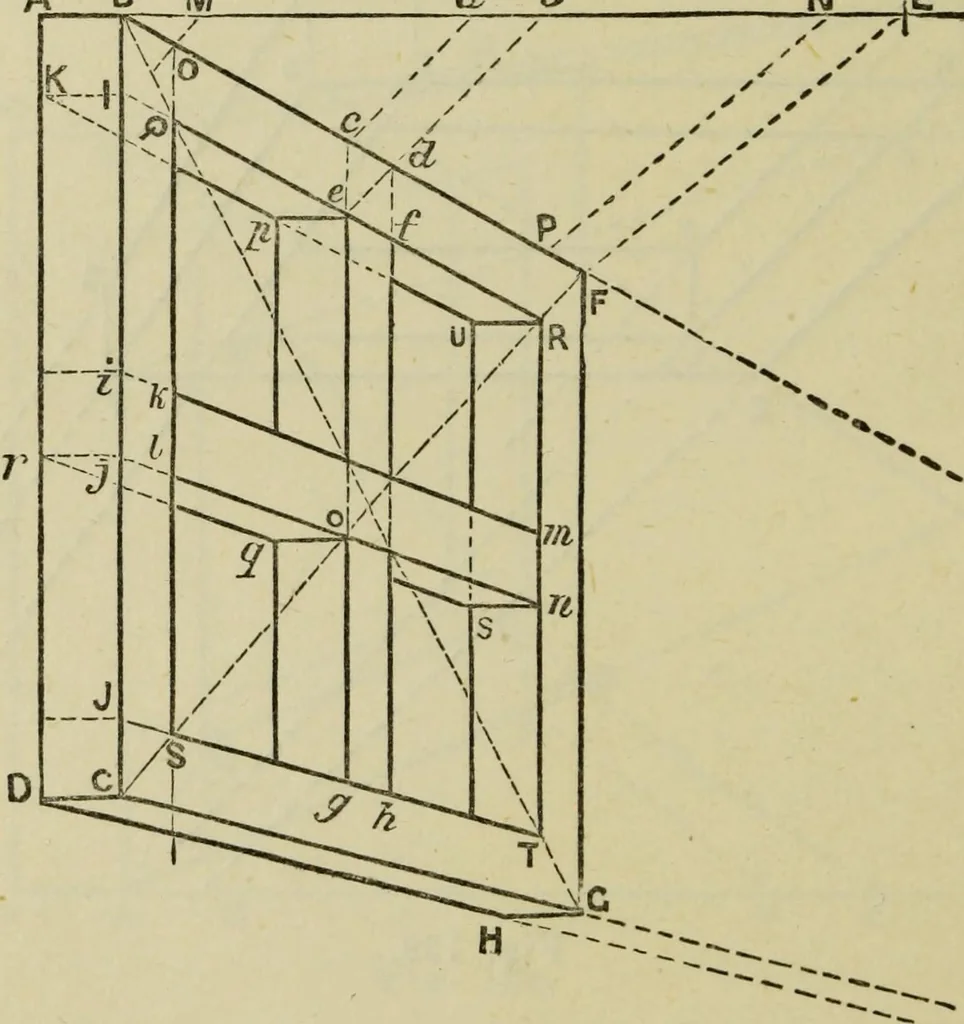

eferring to a square only is, however, shownin Fig. 139, which represents the same object placedhorizontally above the level of the eye, and on the leftof the spectator. Draw the rectangle a b c d, representing the edge ofthe object, and from c and d draw lines to the Point ofSight. From d draw a… … Fig. 140. then to be drawn. This, if continued, would meet thehorizontal in the second Point of Distance. From bdraw a line to the Point of Sight, intersecting a perpen-dicular drawn from f in g. Now within c d set off thedistances c h and d i, equal to A c, and draw lines fromthese points to the…
