Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 324

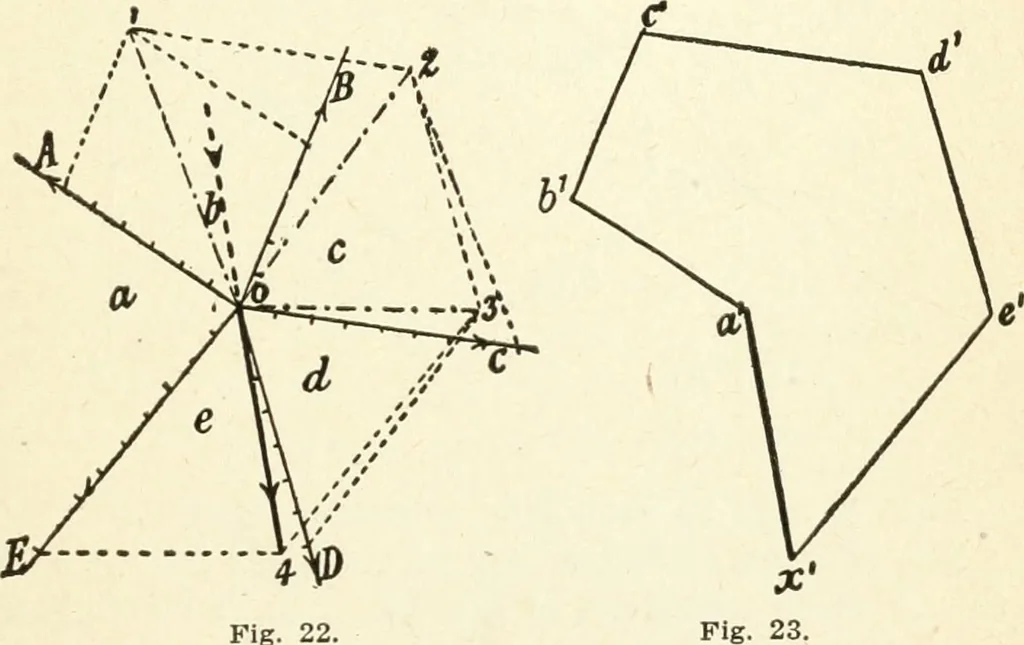

qual in magnitudeand direction to the force 0 4 will have the same effectat the point 0 as the five forces have when acting to- MECHANICS OF CAEPENTRY 321 gether. Since a force 4 0 will balance 0 4, a force rep-resented in magnitude and direction by the line 4 0will, together with the five given… … Fig. 22 equal in magnitude and parallel to ab (Fig. 22). Fromb draw bc equal and parallel to b c; continue the pro-cess, taking the forces in order. It will be found bydrawing the closing line of the polygon, that is, byjoining x to a, that xa gives the magnitude and thedirection of the force…
Carpentry
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
