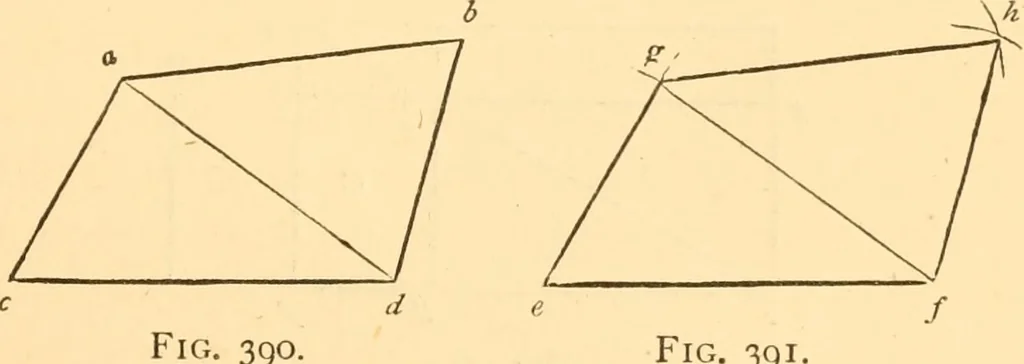

Fig. 389. c\ upon ^, with b for radius, describe an arc at /; upon d,with a for radius, describe an arc intersecting the other at/;join d and /, also / and e; then dfe will be the trianglerequired. 533.—To Construct a Figure Equal to a Given, Right-lined Figure. — Let abed (Fig. 390) be the given… … Fig. 390. Fig. 39] describe an arc at^; upon c, with ca for radius, describe anarc intersecting the other at^; join ^and e; upon / and g,with db and ab for radius, describe arcs intersecting at h\join g and h, also h and /; then Fig. 391 will every wayequal Fig. 390. So, right-lined figures of any…
