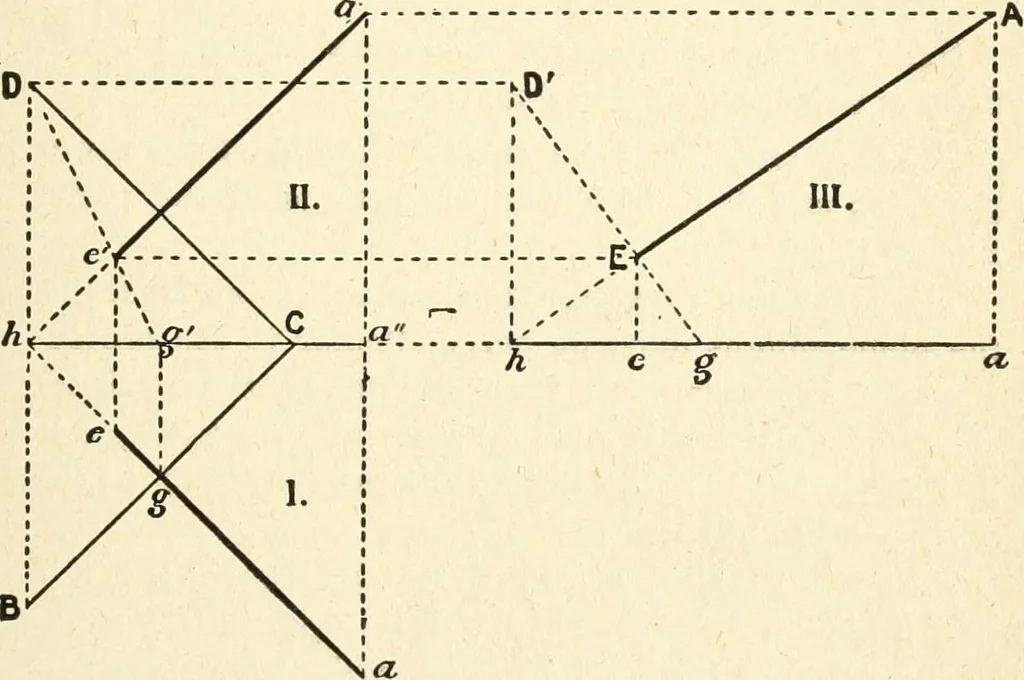

C D be the traces of the givenplane, and a, a the projections of the given point.From the point a, draw a h perpendicular to B C; ah will be the horizontal projection of a plane passing SOLID GEOMETRY 31 vertically through a, and cutting the given plane.On a h as ground line draw a vertical… … i. Horizontal Projection. II. Vertical Projection on Plane parallel toha. III. Vertical Projection on Plane parallel to/lu Fig. 15. a vertical D g, and the angle h g D will be the meas-ure of the inclination of the given plane with the hor- izontal plane; there is now to be drawn, perpendicu-lar to…
