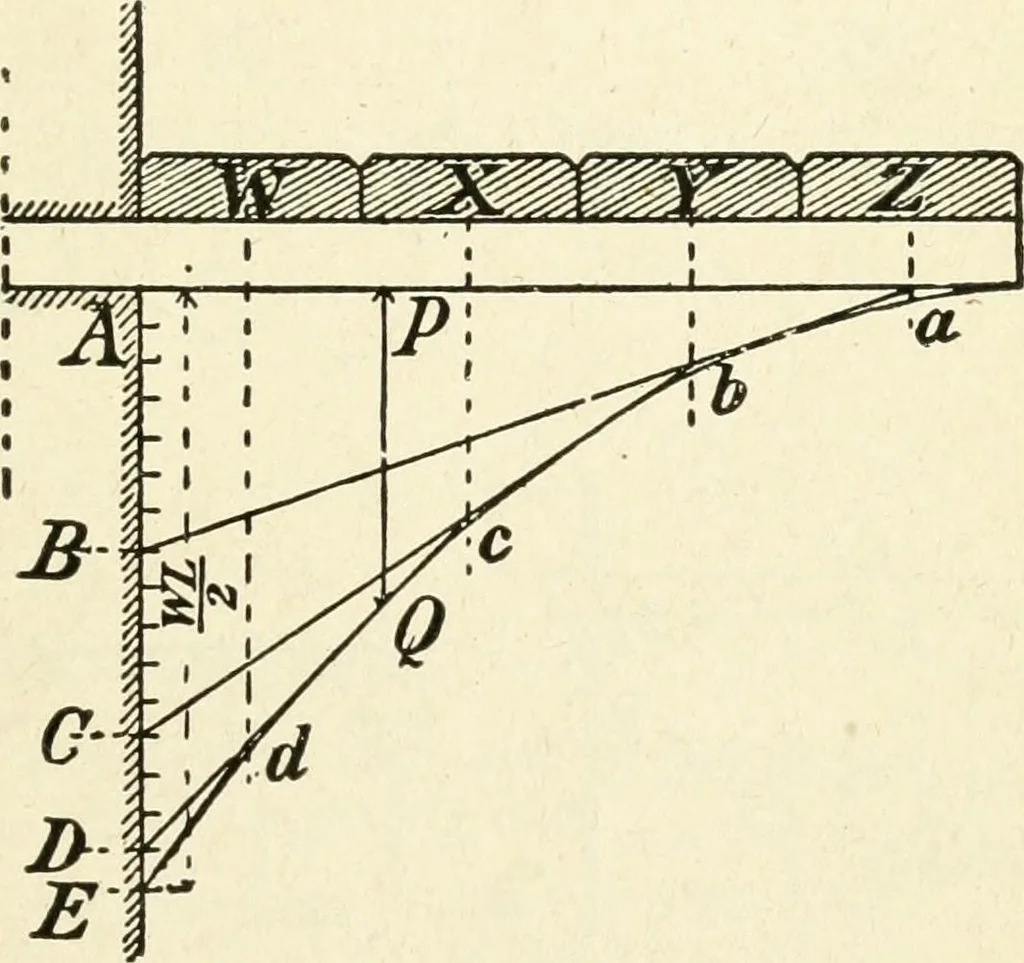

under the point of supportA (i. e. the point where the bending moment is a maxi-mum), and joining B C. Then the bending moment atthe point a will be represented by the length of a bdrawn parallel to A B, MECHANICS OF CARPENTRY 347 Example 2. A cantilever projects 4 ft. and carries auniformly… … Fig. 58. A load arranged as shown in Fig. 58 is equivalentto a concentrated load of 8 cwts. acting in the middleof the length, i. e. 2 ft. from the point of support. Themaximum bending moment will therefore be 8X2=16 ft.-cwts. Fig. 58 is the diagram from which the bending mo-ment at any section may…
