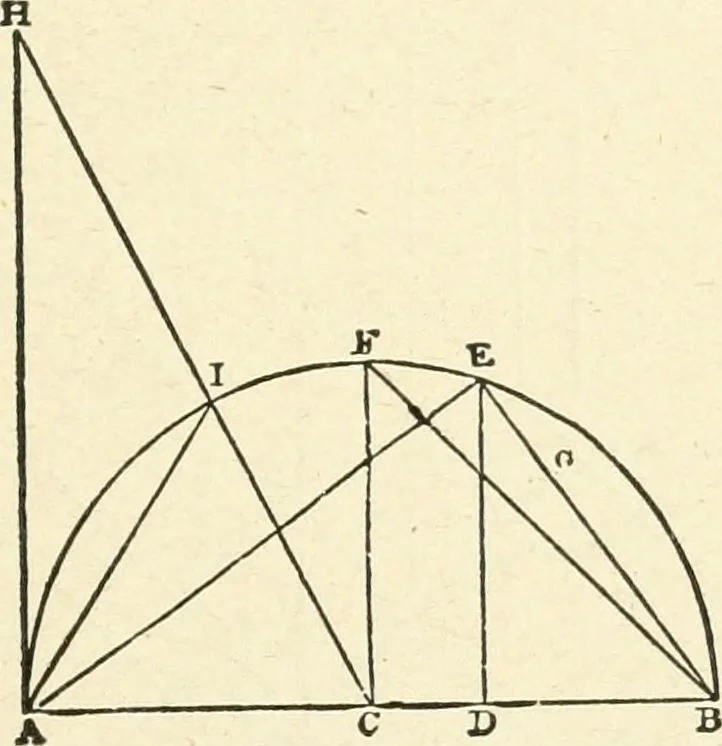

. Draw perpen-diculars from k and i throiigh y z, to k and i, make kand i the same height as e, and draw k i, and join i b,i t. The vertical projection is now complete. SOLID GEOMETRY 55 XXII. In a given sphere to inscribe a tetrahedron, ahexahedron or cube, an octahedron and a dodecahed-ron. Let… … Fig. 30. hedron, and E B the arris of the hexahedron or cube.From the centre C draw the perpendicular radius C F,and the chord F B is the arris of the octahedron. DivideB E in extreme and mean proportion in G, and B Gis the arris of the dodecahedron. The arrises beingknown, the solids can be drawn…
