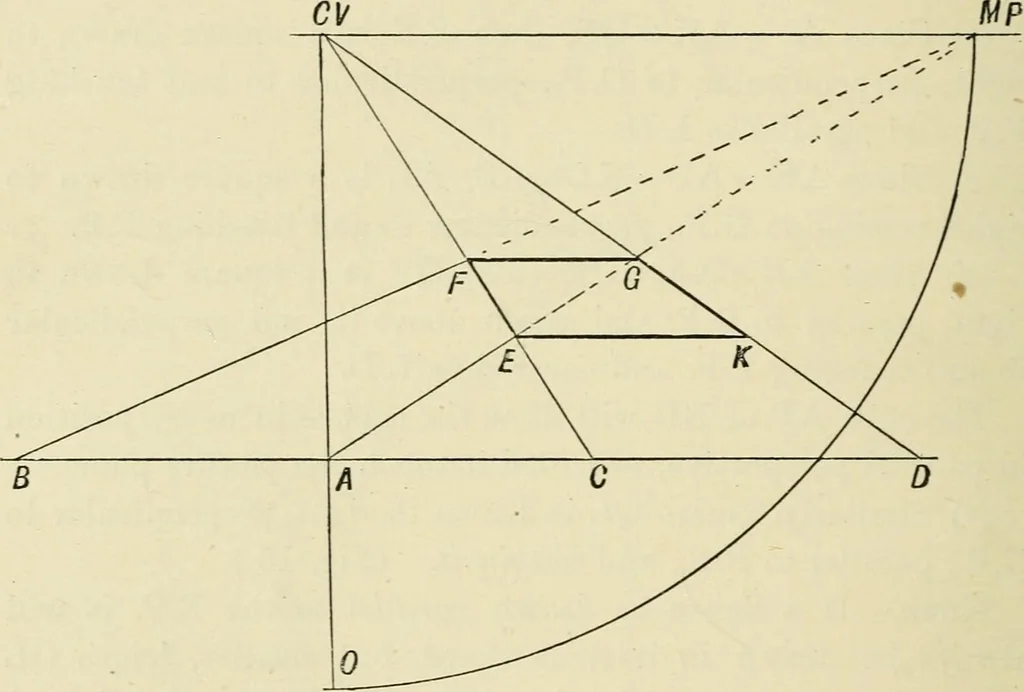

P.P., the others are within it.It will be seen that as the squares recede they appear smaller. 32 DRAWING. Example 1.—Draw a square, side 4, 4 to R., 4 within,lying on G.R, J_ to P.P. H = 6, L.D. = 4, scale \ = V. Construct figure as before. Take AC one inch (4) and CDone inch, take AB to left one… … Fig. 16. Example 2.—Draw a square, side 4 and 6 to left, _J_ toP.P. and 3 within it, and J_ to G.P. and 1 above it.Other specifications as in last example. Construct figure as before. Take C H (6) to left of A,take B 1 (4) to right of A, erect CE _L to AC at C and \\n(5) in height, and mark off D \…
