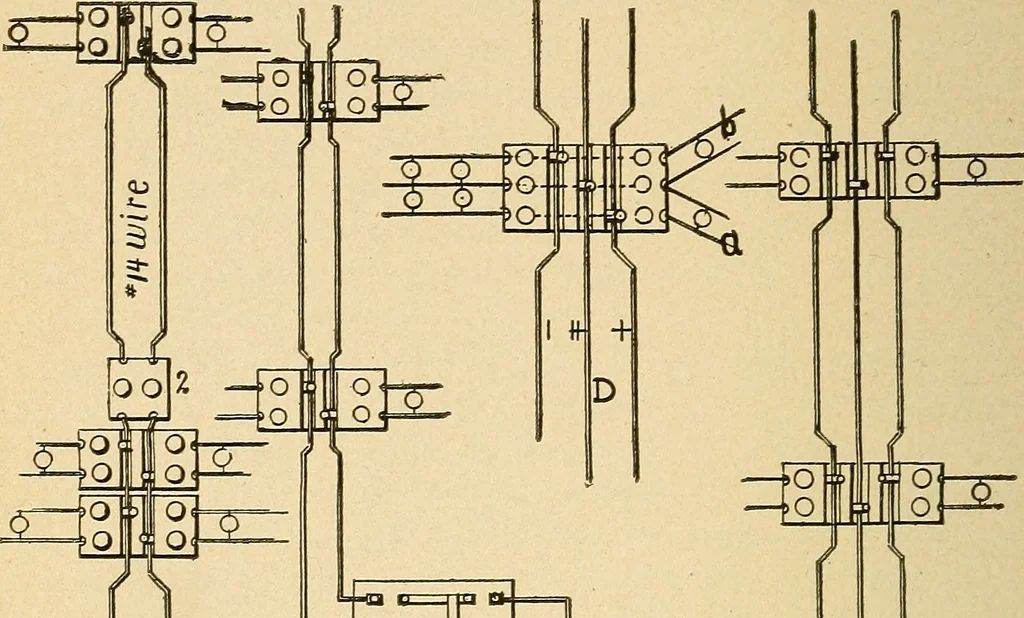

An illustration from Modern electrical construction; a reliable, practical guide for the beginner in electrical construction, showing the latest approved methods of installing work of all kinds according to the safety rules of the National board of fire underwriters, 1905, leaf 121 — . With the treesystem, A, this is impossible; the lamps at the first cut-outcenter will either be too bright or those at the last centertoo dim. Figure C shows a convertible three-wire system. Three-wire circuits may also be run as shown in Figures A and B,using three instead of two wires. In order… … lSjT
