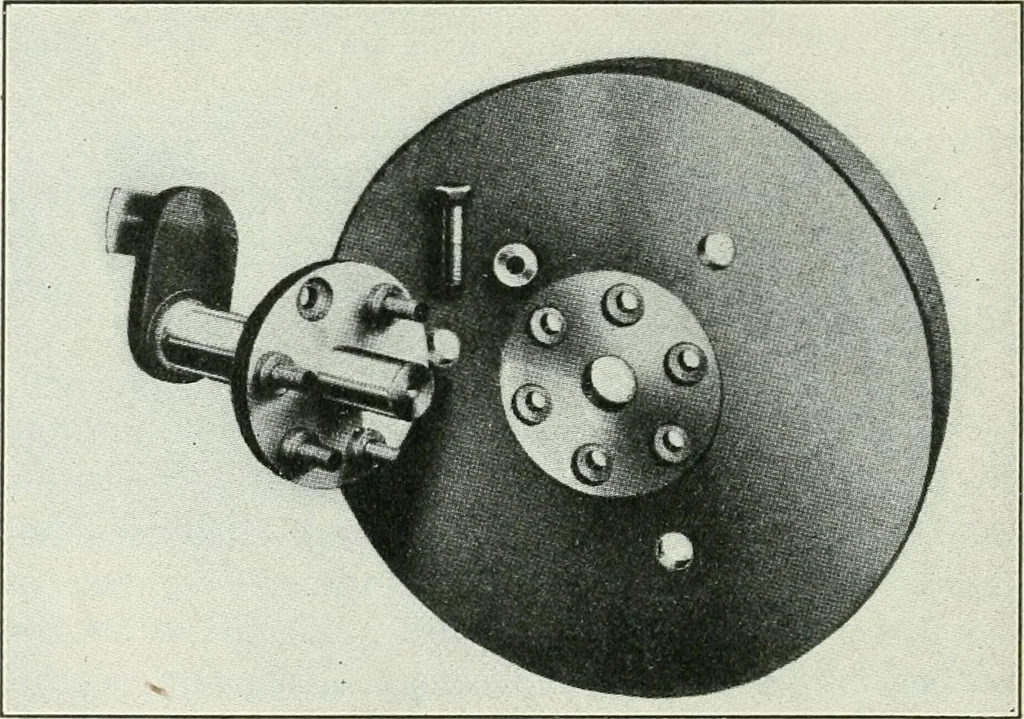

shaft and then driving in a key between the shaftand hub into suitable keyways machined in these mem-bers to prevent the fly-wheel from turning. A bettermethod of fly-wheel retention is outlined at Fig. 51. Inthis a flange is formed integral with the crank shaft andthe fly-wheel member is firmly… … Fig. 51.—Typical Fly-Wheel and Method ofCrankshaft Flange by Bolts. Attaching to The diameter of a fly-wheel must be held to certainlimits and the weight one can put at the rim is restrictedby the limits imposed on circumferential speed. It isstated that a safe speed for a cast-iron pulley is about…
