Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 764

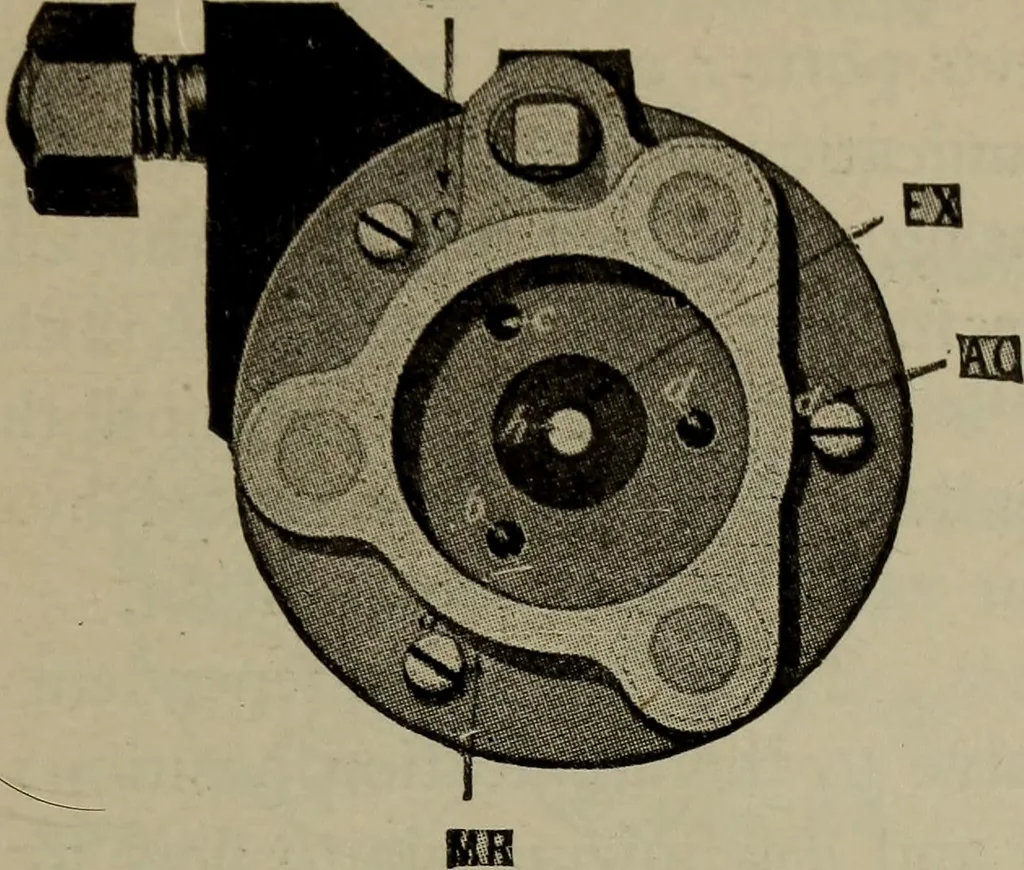

FIG. 314. THE INDEPENDENT tiRAKE VALVE to the chamber above the rotary valve, thus keeping itto its seat. Port f in the rotary valve consists of twocircular openings in the face joined by a cylindrical pas-sage over the top of cavity g. Running Position. This is the position that theindependent…
Locomotives
