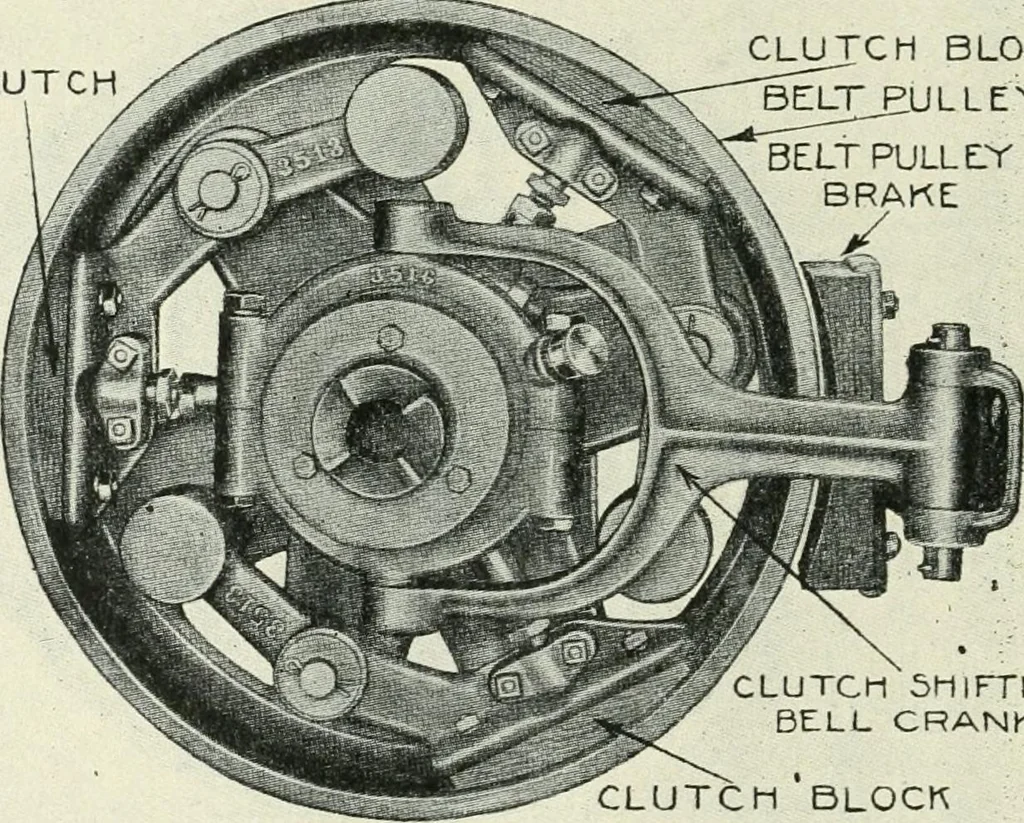

ile the 252 The Modern Gas Tractor fly-wheel revclves. Attached to the driving shaft is aflanged member which carries a number of bell cranksspaced equidistantly or 120 degrees apart. This drivenmember also carries a plate which is keyed to it and whichmust revolve with the driven shaft. This plate… … CLUTCh ShiFTINGBELL CRANK CLUTCM BLOCK Fig. 97.—Clutch of Avery Tractor is Provided With ThreeClutch Shoes. position shov\^n, where the toggle links are approximatelyvertical and the bell cranks are holding the driven anddriving plates of the clutch into firm engagement. When the clutch-link…
