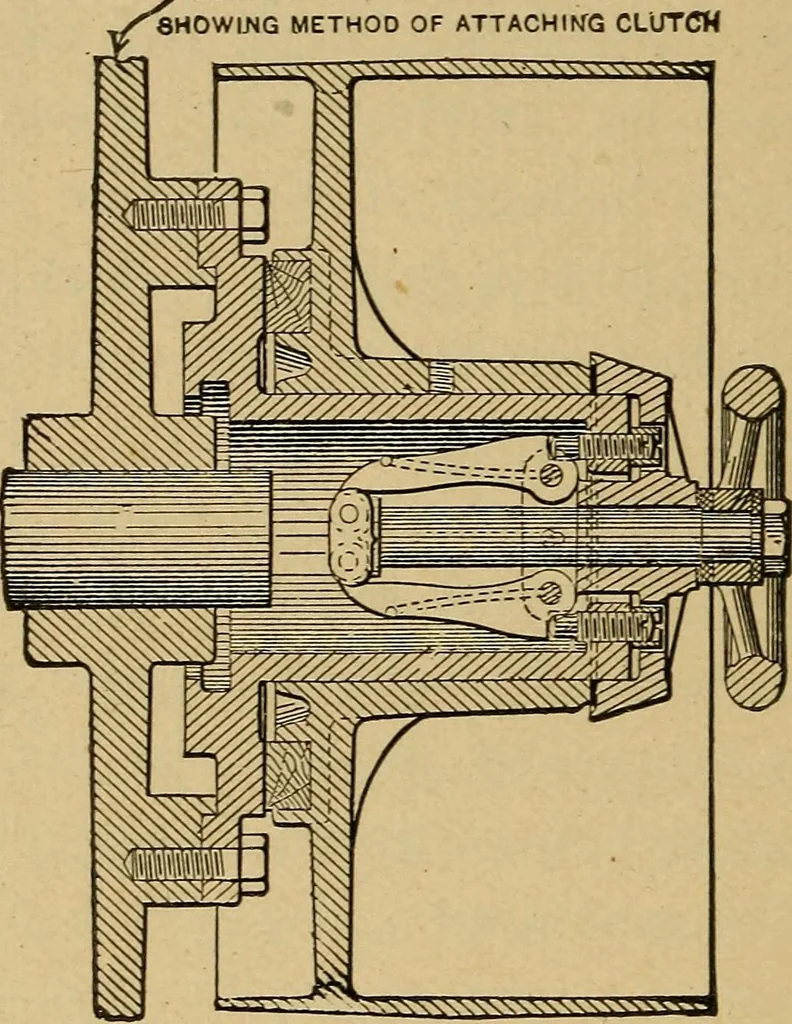

ththe engine fly-wheel by simply pushing in a spindle onwhich a hand-wheel revolves loosely. Two rollers aremounted on the end of the spindle, and bearing on 138 OIL ENGINES. these rollers are the levers which in turn are pivoted tothe gripping plate and a lug on the levers abuts againstthe… … Fig. 63a. between the flange on the carrier and the gripping-plate. To release the clutch the spindle is pulled out,and thereby the strain on the levers is removed, thusallowing the pulley to run loose. This clutch is knownas the B and C Friction Clutch Pulley. CHAPTER VII. INSTRUCTIONS FOR RUNNING…
