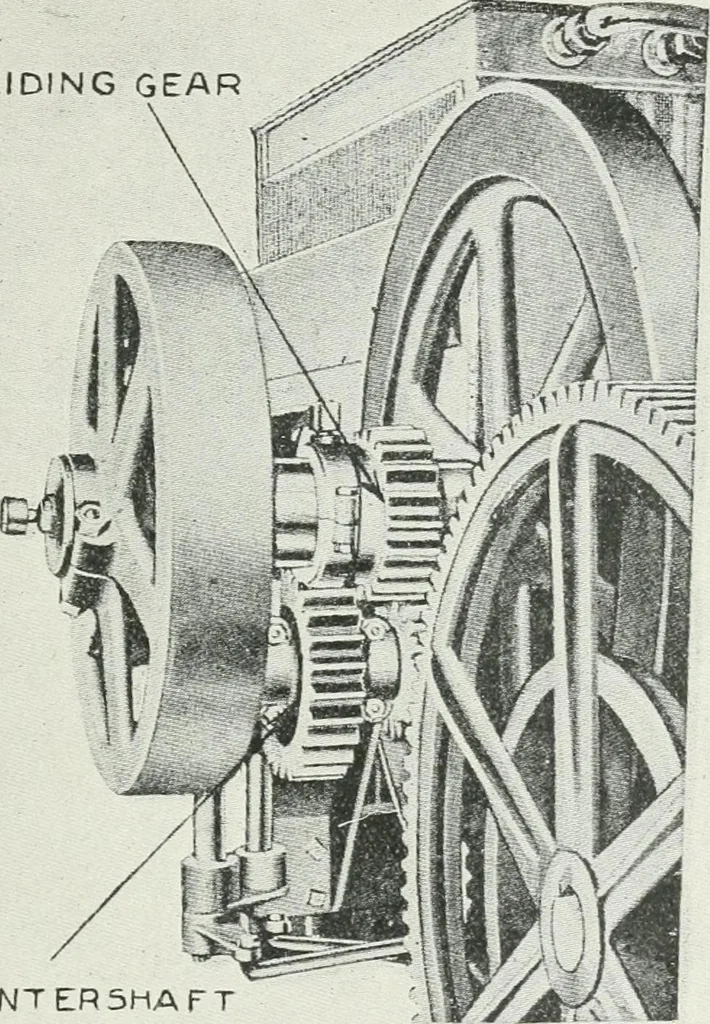

drive shaft, which normallyrevolves free upon it, is clutched to that member then areverse motion will be obtained. The drive from theengine is to the drive sprocket of the transmission gear-ing, which turns in the same direction as the enginecrank shaft and, of course, carries the gear A with… … COUNTERSHAFT Fig. 108.—View of Change Speed Gearing of I. H. C. TwoSpeed Tractor With Sliding Gear in Neutral Position. C is now free to turn inside of gear A and is driven inthe same direction as the counter shaft by means of thedriving chain, which now imparts motion from the coun-ter shaft to…
