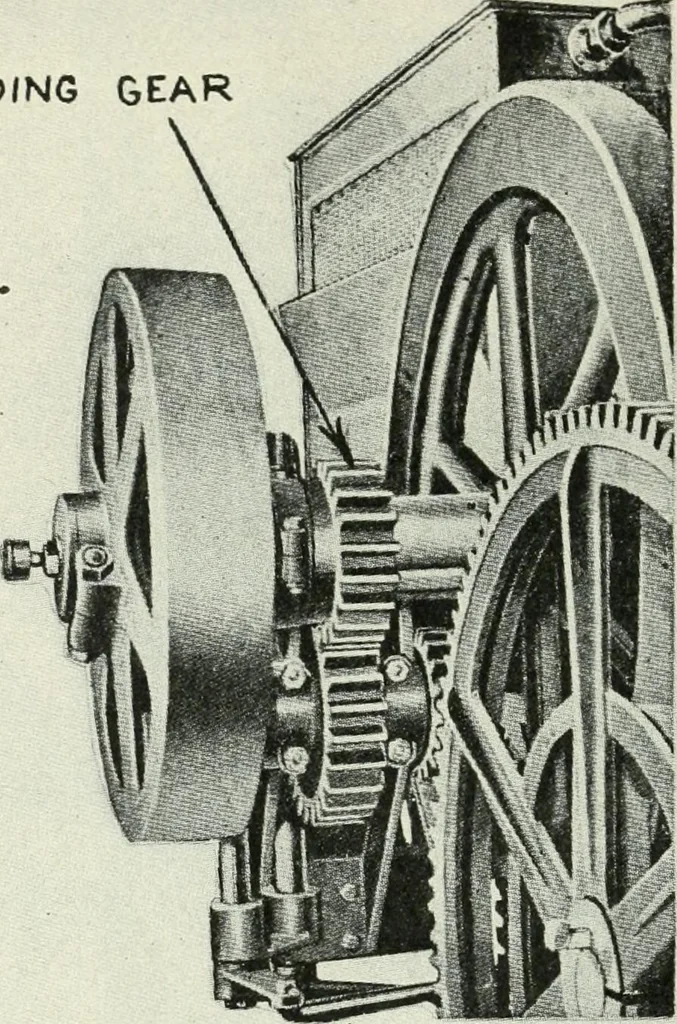

ed Tractor With Sliding Gear in Neutral Position. C is now free to turn inside of gear A and is driven inthe same direction as the counter shaft by means of thedriving chain, which now imparts motion from the coun-ter shaft to the splined differential case drive sleeve C.The bull pinions which are… … Fig. 109.—Sliding Gear of I. H. C. Two Speed Transmissionin Low Speed Position. is placed in a neutral position so that it is out of meshwith either gear A or the reverse sprocket. The slidinggear E which is keyed to the differential drive sleeve Cis then slid into mesh with the gear F on the…
