The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field (1919)
Pagé, Victor Wilfred, 1885-1947 · New York : Scientific American Pub. Co. · leaf 317

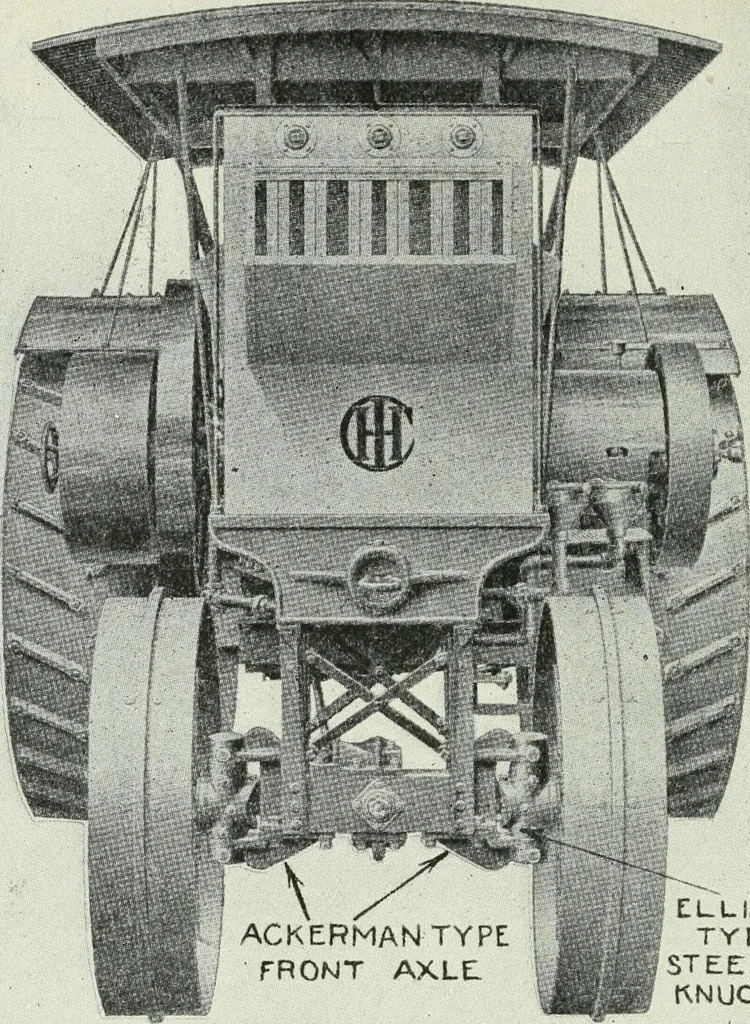

Fig. 132.—Front View of I. H. C. Mogul Gas Tractor FrameShowing Centrally Pivoted One Piece Axle. How Tractors are Steered.—The common methodsof steering tractors when two front wheels are employedare clearly outlined at Fig. 131. At A the ordinarytight and loose chain and drum construction which… … ELLI.OT TYPESTEERINGt\NUCKLE Fig. 133.—Front View of I. H. C. Tractor Using AckernianType Front Axle With Elliot Pattern Steering Knuckles. traction engines is outlined. A drum is mounted acrossthe two frame members and is operated by means ofa worm and worm v/heel. The chains, which run tothe…
